DRC26-38S01-P017 by te connectivity / deutsch automotive

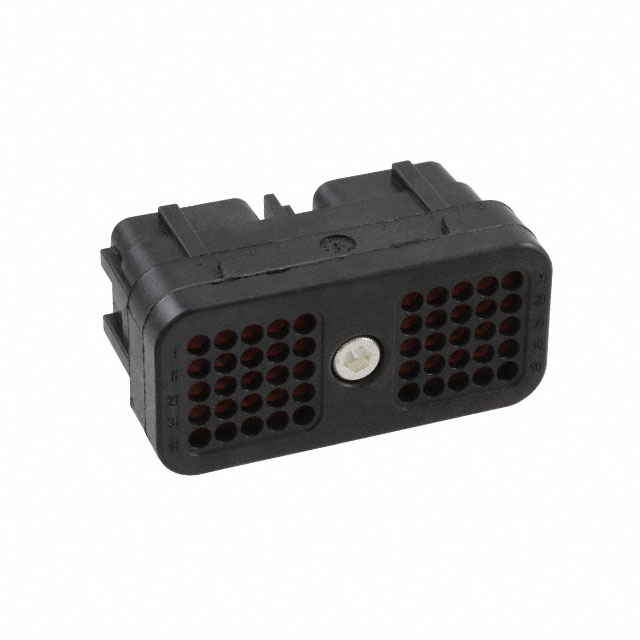

Image is representational - see mfr. specs

DRC26-38S01-P017

Name: DRC26-38S01-P017
Brand: Te Connectivity Deutsch Automotive
SKU: 50875823
Price: 28.48 USD
Availability: InStock

TE Connectivity / Deutsch Automotive

Automotive Plug Rectangular Connector ...

Datasheet

RoHS Compliant

Pack Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The DRC26-38S01-P017 is a plug connector from the DRC Series designed for industrial and commercial transportation applications. It features 38 total cavities with a mixed contact size configuration: 34 size 20 contacts and 4 size 12 contacts, providing flexible pin density for complex wiring harnesses. The connector uses molded-in copper alloy contacts with gold plating on the mating side and tin plating on the PCB side (size 12 contacts are tin plated on both mating and PCB sides). It is constructed with glass-filled PA and PPS housing and silicone rubber grommet for environmental sealing. This configuration is commonly paired with DRC20-76P receptacles and is suitable for applications requiring high-density interconnection with mixed contact ratings in sealed automotive and industrial environments.

Product Highlights:

Potential Applications:

Search Keywords: DRC2638S01P017

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / Deutsch Automotive

Part No:

DRC26-38S01-P017

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538908180

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
