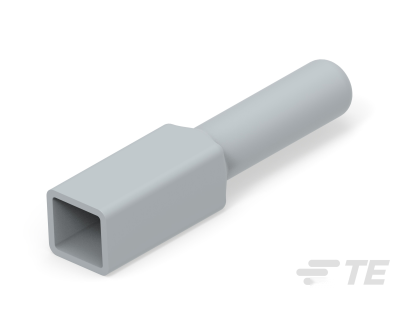

DT04-2P-RT25

Products found: 0

Supplier:

TE Connectivity / Deutsch Automotive

Part No:

DT04-2P-RT25

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536308000

COO:

US

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

1

Package Type:

Bag

Terminal Position Assurance:

No

Contact Current Rating (Max):

13 A

Number of Positions:

2

Packaging Method:

Box

Connector System:

Component-to-Wire

Primary Locking Feature:

Overmolded

Strain Relief:

Add By Accessory

Primary Product Color:

Black

Packaging Quantity:

650

Sealable:

Yes

Serviceable:

No

Agency/Standard:

SAE J2030

Connector Position Assurance Capable:

No

Number of Rows:

1

Blank Cavity Position:

0

Nominal Voltage Architecture:

12 V, 24 V, 48 V

Product Length:

1.555 in, 39.5 mm

Degree of Protection:

IP68 , IP6K9K

Centerline (Pitch):

.215 in, 5.46 mm

Operating Temperature Range:

-55 – 125 °C, -67 – 257 °F

Operating Voltage:

250 VAC, 250 VDC

Product Width:

1 in, 25.4 mm

Operating Temperature (Max):

125 °C, 257 °F

Mating Pin Diameter:

.063 in, 1.59 mm

Connector & Contact Terminates To:

Wire & Cable

Circuit Application:

Power & Signal

Connector Shape:

Rectangular

Connector Height:

.873 in, 22.71 mm

Mating Alignment Type:

Polarized

Mating Alignment:

With

Housing Material:

PA GF

UL Flammability Rating:

Not Tested
