097-0015-20 by te connectivity / deutsch

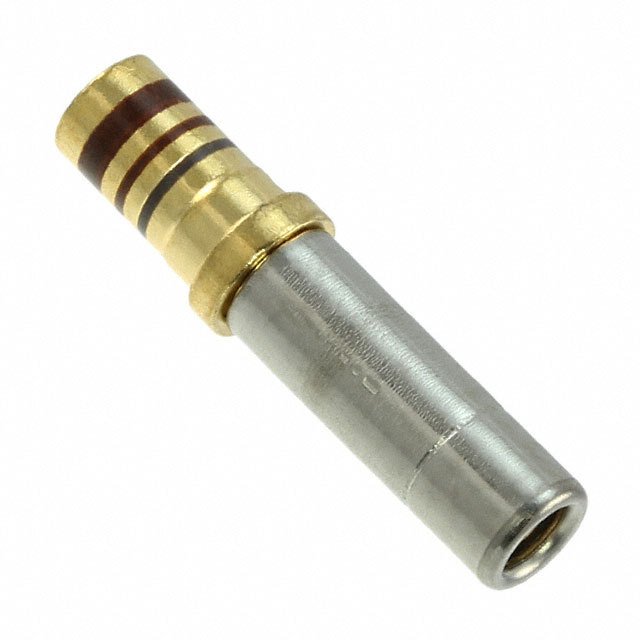

Image is representational - see manufacturer specifications
TE Connectivity / Deutsch Authorized Distributor

097-0015-20

097-0015-20 ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The TE Connectivity/Deutsch 097-0015-20 is a high-quality connector designed for reliability and performance in demanding environments. This component is ideal for applications requiring robust and secure electrical connections, commonly used in automotive, aerospace, and industrial settings. The 097-0015-20 connector excels in providing seamless conductivity with its durable materials and precision engineering. It is engineered to withstand extreme conditions, offering excellent resistance to vibration, temperature, and moisture. For projects needing secure and lasting connectivity solutions, the 097-0015-20 is an exceptional choice, ensuring your applications function smoothly and efficiently.

Search Keywords: 097001520

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
097-0015-20
Alias/AKA:
ZPF000000000001201, EN3155-004M2020
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
FR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Barrel Type:
Crimp
Contact Termination Area Plating Material:
Gold
Contact Mating Area Plating Material:
Gold
Sealable:
Yes
Wire Size:
24 – 20 AWG
Contact Size:
20
Contact Base Material:
Copper Alloy
Contact Retention Type:
Spring
Material:
Copper Alloy
Contact Classification:
Signal
Operating Temperature Range:
-65 – 260 °C, -85 – 500 °F
Circuit Application:
Power & Signal & Data
Contact Current Rating (Max):
7.5 A
Contact Type:
Pin
Operating Voltage:
115 VDC
Contact Retention:
With
Termination Method to Wire & Cable:
Crimp
Lattice Contact Mating Area Plating Material:
Gold
Wire/Cable Type:
Strip
Connector System:
Cable-to-Cable
Contact Retention Within Housing:
With
Compatible With Wire & Cable Type:
Discrete Wire
Wire Contact Termination Area Plating Material:
Gold
Contact Retention Type within Housing:
Spring
Contact Size Code:
20

IN STOCK: 0

On Order: 2,500   can ship 12/16/26

MOQ for In Stock Qty: 10

MOQ for out of Stock Qty: 620

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
10
$4.73
100
$4.10
250
$3.87
620
$3.53
1,240
$3.12
1,860
$3.11
2,479 +
$2.68
