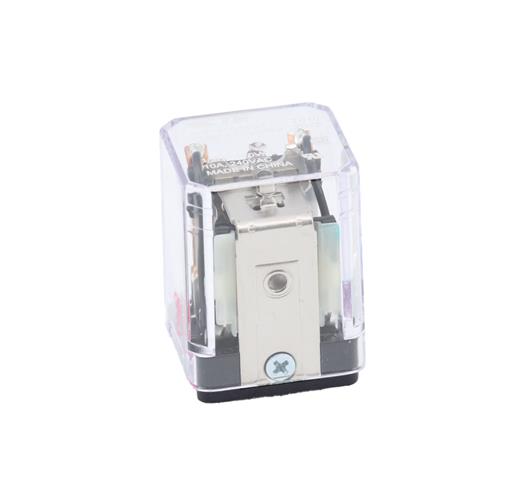

KUP-11D11-24 by te connectivity / p-b brand

KUP-11D11-24

TE Connectivity / P&B Brand

Power Relay 24VDC 5A DPDT(39.4x35.7x50)mm Socket ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / P&B Brand part KUP-11D11-24 is a reliable and high-quality power relay designed for various applications. With a voltage rating of 24VDC and a current rating of 5A, this relay ensures efficient and safe operation. It features a DPDT (Double Pole Double Throw) configuration, providing versatility in switching between two independent circuits. The compact dimensions of 39.4x35.7x50mm make it suitable for space-constrained environments. The included socket facilitates easy installation and enhances the overall reliability of the relay. Trust TE Connectivity / P&B Brand for dependable and durable power relays to meet your electrical needs.

Product Highlights:

  • KUP Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 5 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: KUP11D1124

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KUP-11D11-24
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
5 A
Mounting:
Socket
Termination Style:
0.187Quick Connect/Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
472 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 272

Can Ship immediately

Factory Lead-Time 18 Weeks

Price (CAD)

Qty
Unit Price
1
$39.554
10
$31.836
25
$29.860
50
$28.635
100
$26.569
250
$26.431
500 +
$26.109
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
