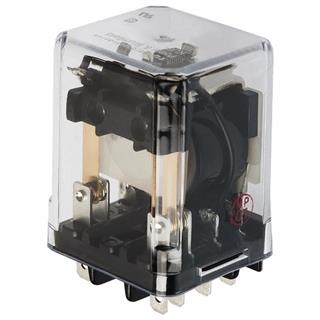

KUP-11D15-24 by te connectivity / p-b brand

KUP-11D15-24

TE Connectivity / P&B Brand

Power Relay 24VDC 10A DPDT(38.9mm 35.7mm 50mm) Socket ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / P&B Brand part KUP-11D15-24 is a reliable power relay designed for a wide range of applications. It is a double-pole, double-throw (DPDT) relay with a maximum current rating of 10A. This relay operates on a 24VDC power supply and comes with a convenient socket for easy installation. With its compact dimensions of 38.9mm x 35.7mm x 50mm, it can easily fit into tight spaces without sacrificing functionality. The KUP-11D15-24 relay is known for its high-quality construction and long-lasting performance, making it an excellent choice for various industrial and commercial applications.

Product Highlights:

  • KUP Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 10 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: KUP11D1524

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KUP-11D15-24
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
0.187Quick Connect/Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
472 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 660

Ships today, if you order in

On Order: 450   can ship 3/11/26

Factory Lead-Time 22 Weeks

Price (CAD)

Qty
Unit Price
1
$34.685
10
$23.873
25
$22.449
50
$22.097
100
$21.866
250
$21.637
500 +
$21.530
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
