KUP-14D15-24 by te connectivity / p-b brand

KUP-14D15-24

TE Connectivity / P&B Brand

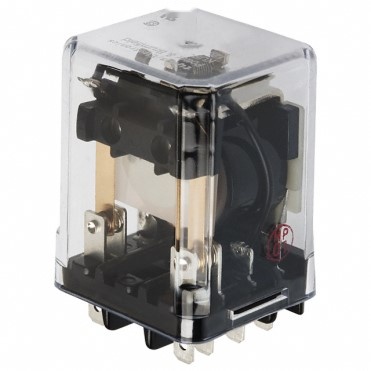

Power Relay 24VDC 10A 3PDT(39.4x35.7x50)mm Socket ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / P&B Brand part KUP-14D15-24 is a high-quality power relay designed for a wide range of applications. With a 24VDC coil voltage and a 10A contact rating, this relay offers reliable and efficient performance.Featuring a 3PDT configuration, this relay is capable of providing three separate contacts for switching various electrical circuits simultaneously. This versatility makes it ideal for use in complex electrical systems where multiple signals or loads need to be controlled.The compact size of this relay (39.4x35.7x50mm) allows for easy installation and integration into existing equipment or systems. Additionally, it comes with a socket for convenient mounting and secure connection.Trustworthy and durable, the TE Connectivity / P&B Brand part KUP-14D15-24 power relay is a reliable choice for industrial, automotive, and commercial applications where power switching and control are required.

Product Highlights:

  • KUP Series
  • Contact Arrangement = 3 Form C, 3PDT, 3 C/O
  • Contact Current Rating = 10 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: KUP14D1524

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KUP-14D15-24
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
3PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
0.187Quick Connect/Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
472 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 2,176

Ships today, if you order in

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
1
$24.741
10
$17.747
25
$17.191
50
$16.851
100
$16.017
250
$15.934
500 +
$15.862
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes
