PRD-11DG0-12 by te connectivity / p-b brand

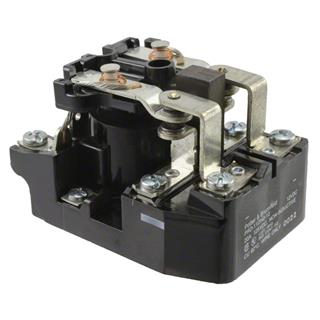

Image is representational - see mfr. specs

PRD-11DG0-12

TE Connectivity / P&B Brand

Power Relay 12VDC 30A DPDT(85.73x63.8x63.5)mm Chassis Mount ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PRD-11DG0-12 from TE Connectivity / P&B Brand is chassis mount double pole double throw (DPDT) power relay with 12VDC coil voltage and 71 Ohms coil resistance. This relay has 30A contact curent and 240VAC max switching voltage. Dimensions of this relay are: 85.73 mm x 63.8 mm x 63.5 mm. Operating temperature range is from -55°C to 80°C.

Product Highlights:

  • PRD Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 30 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: PRD11DG012

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
PRD-11DG0-12
Alias/AKA:
3-1393127-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 80 °C

IN STOCK: 58

Can Ship immediately

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
1
$78.21
5
$76.84
20
$72.38
40
$61.80
60
$61.65
100
$58.25
260 +
$54.69
Suppliers Standard Package
