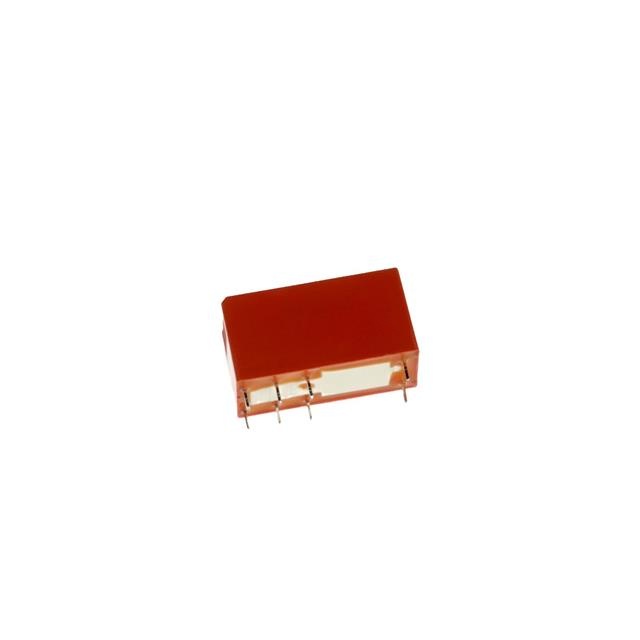

RTE24024F by te connectivity / p-b brand

RTE24024F

TE Connectivity / P&B Brand

Power Relay 24VDC 8A DPDT(29mm 12.7mm 15.7mm) THT ...

Datasheet
RoHS Compliant
Carton Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / P&B Brand part RTE24024F is a powerful and reliable power relay designed for various industrial applications. This compact and durable relay operates at 24VDC and can handle a current of up to 8A. It features a double-pole double-throw (DPDT) configuration, making it suitable for versatile switching applications. With dimensions of 29mm x 12.7mm x 15.7mm, this through-hole mountable relay is easy to install and integrate into your circuit design. Trust the RTE24024F to deliver excellent performance and longevity, making it an ideal choice for your power relay needs.

Product Highlights:

  • RT2 Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 8 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: RTE24024F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
RTE24024F
RoHS:
Yes
HTS:
8536410050
COO:
AT
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Carton
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
8 A
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
1.44 KOhm
  Possible Replacement options available.  See Alternatives

IN STOCK: 16,307

Ships today, if you order in

Minimum Order: 20

Multiple: 20

Factory Lead-Time 23 Weeks

Price (USD)

Qty
Unit Price
20
$3.399
60
$2.122
100
$2.112
260
$2.091
500
$2.081
1,000
$2.070
2,500
$2.060
5,000 +
$2.050
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
