202A142-25-0 by te connectivity / raychem brand

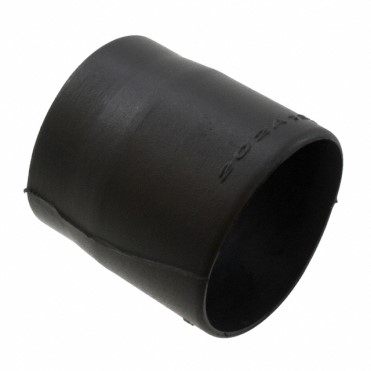

Image is representational - see mfr. specs

202A142-25-0

TE Connectivity / Raychem Brand

Heat Shrink Boot - Shell Size 42 - 1.220" (30.99mm)/0.701" (17.81mm) Large, 1.220" (30.99mm)/0.291" (7.39mm) Small Dia - 2.630" (66.80mm) L - Black. ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 202A142-25-0 from TE Connectivity / Raychem Brand is black color heat shrink boot with shell size 42. This heat shrink boot has 1.220" (30.99mm) to 0.701" (17.81mm) large diameter and 1.220" (30.99mm) to 0.291" (7.39mm) small diameter. This is elastomer, semi-rigid heat shrink boot with length of 2.630" (66.80mm). Operating temperature range is from -75 to 150 °C ( -103 to 302 °F ).

Product Highlights:

  • Molded Boot
  • Family Name = 202A1
  • Straight
  • General Purpose Application, Military Application
  • Connector Accessory Outside Diameter (Min-Max) = 17.80 - 31.00 mm

Search Keywords: 202A142250

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
202A142-25-0
Alias/AKA:
806698-000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
3926909989
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bag
Type:
Molded Boot
Body Material:
Fluid Resistant Elastomer
Shrink Wall Type:
Thin
Styles:
Straight
Shrink Ratio:
N/A
Dielectric Strength:
N/A
Color:
N/A
Operating Temperature:
-75 to 150 °C
Inside Diameter After Shrinking:
17.8/7.4 mm
Inside Diameter Before Shrinking:
31/31 mm

IN STOCK: 230

Can Ship immediately

On Order: 250   can ship 11/23/26

Minimum Order Quantity: 5

Factory Lead-Time 45 Weeks

Price (USD)

Qty
Unit Price
5
$22.28
10
$19.88
25
$18.45
50
$17.22
100
$14.77
250
$12.31
500 +
$11.89
