RAY-103-7.5(100) by te connectivity / raychem brand

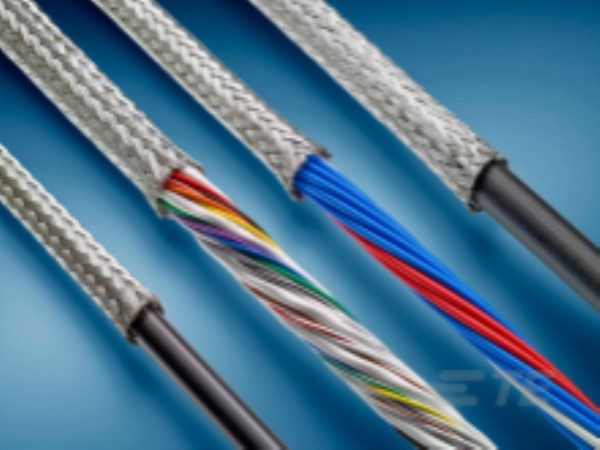

Image is representational - see manufacturer specifications
TE Connectivity / Raychem Brand Authorized Distributor

RAY-103-7.5(100)

RAY-103-7.5(100) is a nickel-plated copper braid with a 7.5 mm nominal internal diameter designed for electrical shielding and mechanical protection. ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The RAY-103-7.5(100) is a RAYBRAID® nickel-plated copper braid used for robust shielding of wire and cable harnesses. It is constructed from 36 AWG (0.127 mm) strands configured with 24 carriers and 14 ends, providing a nominal coverage of 99.5%. This braid has a nominal internal diameter of 7.5 mm and a maximum weight of 46.3 kg/km. Designed to meet the performance requirements of specification WSD 1922, it offers effective EMI shielding and physical protection in various applications.

Search Keywords: RAY10375100

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
RAY-103-7.5(100)
Alias/AKA:
D209003001
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
7419805050
COO:
GB
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
REEL
Type:
Braid
Body Material:
Copper
Color:
N/A
Operating Temperature:
-65 to 200 °C
Dimension:
N/A

IN STOCK: 264

Can Ship immediately

MOQ for In Stock Qty: 10

MOQ for out of Stock Qty: 75

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
10
$48.12
25
$47.53
50
$47.42
75
$47.30
150
$47.18
225
$47.06
300 +
$46.95
