SHF260-0113-8-9 by te connectivity / raychem brand

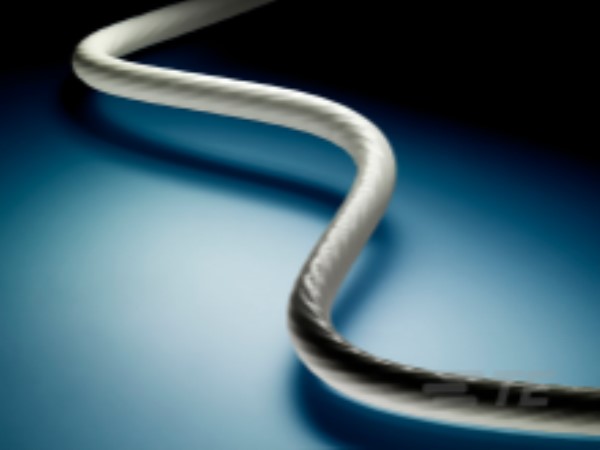

Image is representational - see mfr. specs

SHF260-0113-8-9

TE Connectivity / Raychem Brand

SHF260-0113-8-9 ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The CW5506-000 is a highly flexible SHF-260 wire intended for high-performance power feeder applications. It is constructed with a nickel-coated copper conductor and modified PFA insulation, providing excellent chemical and fluid resistance. This wire operates over a temperature range of -65°C to +260°C and is rated for 1000 Vrms. Its exceptional flexibility allows for a tight bending radius down to 6 times its diameter, preventing insulation wrinkling or cracking. Typical applications include primary and secondary power distribution in aerospace, defense, and marine systems where high current and routing in confined spaces are necessary.

Search Keywords: SHF260011389

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
SHF260-0113-8-9
Alias/AKA:
CW5506-000
Unit of Measure:
Per Foot
RoHS:
Yes
HTS:
8544493040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Insulation Material:
Modified PFA
Wire Size:
8 AWG
Conductor Material:
Nickel-Coated Copper
Operating Temperature Range:
-65 – 260 °C
Strand Size:
36 AWG
Jacket Color:
White
Conductor Diameter:
.157 in
Number of Strands:
665
Product Type:
Wire Lead
Number of Conductors:
1
Voltage Rating:
1000 VAC

IN STOCK: 545 Feet

Can Ship immediately

MOQ for In Stock Qty: 5 Feet

MOQ for out of Stock Qty: 125 Feet

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
5
$15.33
25
$12.65
50
$12.25
125
$11.74
250
$11.63
375
$11.52
500 +
$11.40
Log in for special pricing Click for Quote Price Match Request
