TXR54AB00-1005AI by te connectivity / raychem brand

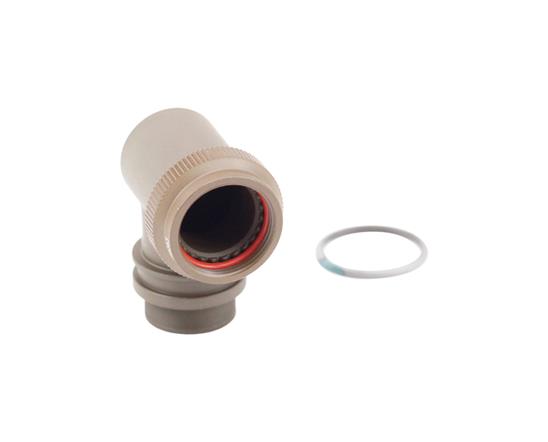

Image is representational - see manufacturer specifications
TE Connectivity / Raychem Brand Authorized Distributor

TXR54AB00-1005AI

Backshell - Heat Shrink Adapter - 0.732"(18.60mm) Outside Diameter - Shell Size 10,10S,10SL - 5/8-24UNEF Thread Size - 180° Cable Exit - Entry Size 5. ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The TXR54AB00-1005AI from TE Connectivity / Raychem Brand is shielded backshell, heat shrink adapter with shell size 10/10S/10SL, entry size 5 and ring to suit single braid. This backshell has 0.732" (18.60mm) outside diameter, 5/8-24 UNEF thread size and 180° cable exit. The TXR54AB00-1005AI include: 1 backshell, 1 braid and 1 tinel ring. Operating temperature range is from -65 to 175 °C ( -85 to 347 °F ).

Product Highlights:

  • Terminate To Cable
  • Style = Tinel Lock
  • Connector Code = 54
  • Straight
  • Shell Size = 10, 10S, 10SL

Search Keywords: TXR54AB001005AI

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
TXR54AB00-1005AI
Alias/AKA:
506793-000
Unit of Measure:
Per Each
RoHS:
No
HTS:
8538908180
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Shell Size:
10,10S,10SL
Angular Function:
180 °
Coupling:
N/A
Body Material:
Aluminum Alloy
Body Plating:
Cadmium Over Electroless Nickel
Entry Size:
6 mm
Operating Temperature:
N/A

IN STOCK: 148

Ships today, if you order in

MOQ for out of Stock Qty: 13

Factory Lead-Time 25 Weeks

Price (USD)

Qty
Unit Price
1
$189.65
5
$174.37
10
$168.03
13
$167.22
25
$166.41
38
$165.61
50 +
$164.82
