RD8-10 by thomas - betts

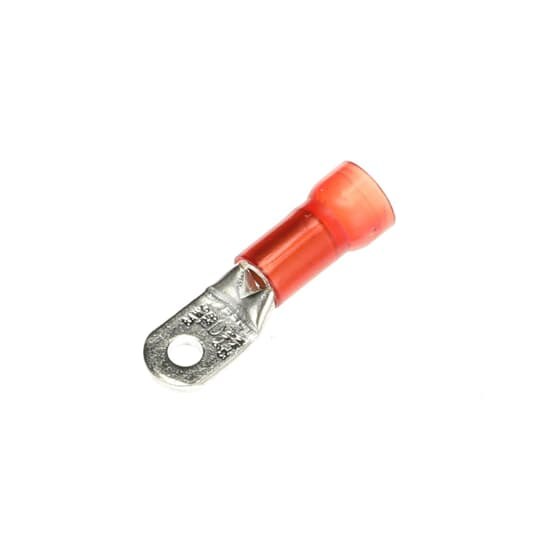

Image is representational - see manufacturer specifications
Thomas & Betts Authorized Distributor

RD8-10

Sta-Con® Nylon-Insulated Large Ring Terminal - Wire Size #8AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole #10 - Voltage Rated 600V ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The RD8-10 is a large ring terminal insulated with high dielectric-strength nylon for wire size #8 AWG. These ring terminals have funneled barrel entry, deep internal serrations, and brazed or overlapping seams. Length 1.48 inches, .42 inches width, maximum insulation .340 inches, bolt hole #10. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation, rated for 105°C max temperature. Installing tool ERG4007.

Search Keywords: RD810

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Thomas & Betts
Part No:
RD8-10
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
25
  Different packaging options available.  See Alternatives

IN STOCK: 370

Ships today, if you order in

Minimum Order Quantity: 25

Multiple: 25

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
25
$7.99
50
$7.41
100
$6.96
250
$6.55
500
$6.54
1,000
$6.52
2,500
$6.50
5,000 +
$6.49
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

ERG4007

Ergonomic Hand Tool for Crimping RD, RE Insulated Terminals
