RG737

Sta-Con® Nylon-Insulated Large Ring Terminal - Wire Size #2AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole 3/8 Inch - Voltage Rated 600V ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

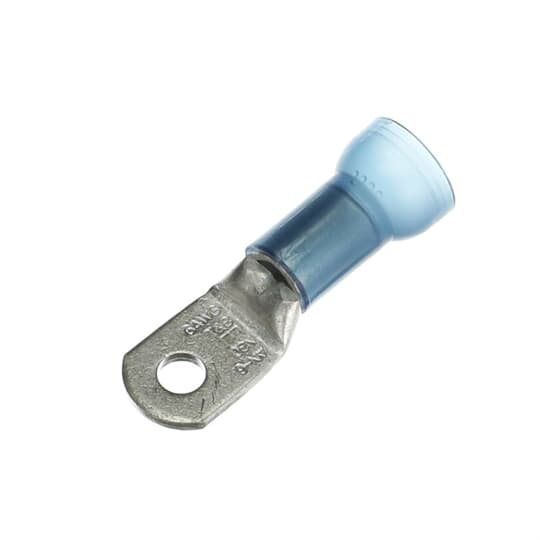

The RG737 is a large ring terminal insulated with high dielectric-strength nylon for wire size #2 AWG. These ring terminals have funneled barrel entry, deep internal serrations, and overlapping seams. Length 2.15 inches, .69 inches width, maximum insulation .588 inches, bolt hole 3/8 inches. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation, rated for 105°C max temperature. Installing tool TBM6S.

Product Highlights:

Potential Applications:

Search Keywords: RG737

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RG737

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
