TAC17251115HW by u.s. toyo fan

TAC17251115HW

U.S. TOYO Fan

AC Fan - 172 x 150 x 51mm - 115 VAC - 3100 RPM - High Speed - Wire ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

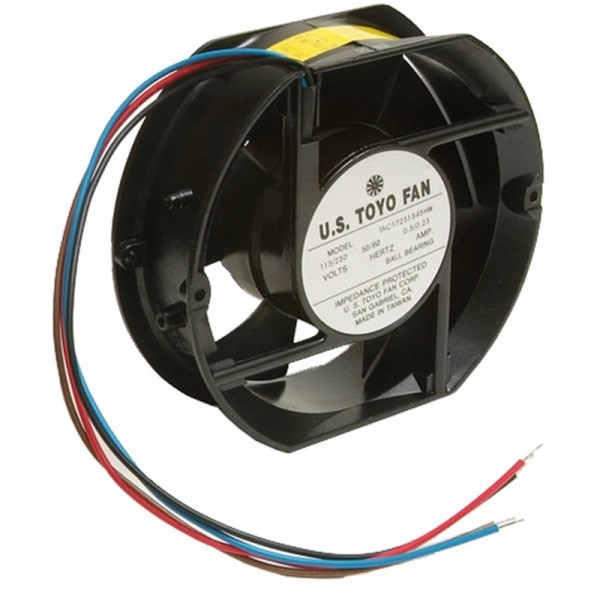

TAC17251115HW is an AC Ball Bearing Fan from US Toyo Fan. It has an airflow of 235 CFM, Acoustical Noise: 50 dB (A)), RPM of 3100. The frames are aluminum alloy in painted black finish, bearings are ball, and impeller are made from UL94V-0 Plastic. It measures 6.77 in. dia. x 5.9 wide x 2.00 in. thick (172mm dia. x 150mm wide x 51mm thick), and weighs 35.3 oz (1000g). The fan operates at 115VAC (75VAC min) at a temperature range of -20° to + 80° C. Its insulation is Class B with a resistance 10 Megohms min @ 500 VDC and dielectric strenght of 1,500 VAC for 1 minute. Termination are through lead wires. The fans are designed and manufactured to prevent "burn-out" failure caused by restriction of rotating parts. It meets UL 106227 & CSA LR702499 and are impedance protected.

Search Keywords: TAC17251115HW

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
U.S. TOYO Fan
Part No:
TAC17251115HW
RoHS:
Yes
HTS:
8414599080
COO:
TW
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Dimension:
mm1359

IN STOCK: 16

Ships today, if you order in

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
1
$28.469
10
$25.400
30
$23.371
50
$22.361
100
$20.631
250
$20.075
500 +
$19.776
Suppliers Standard Package
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides
