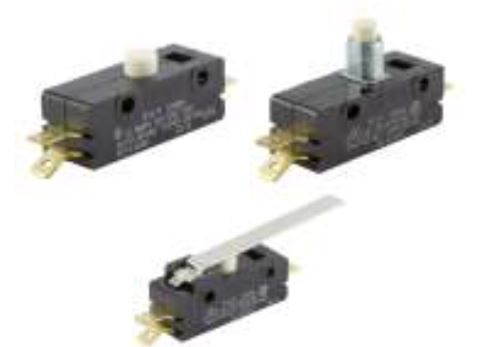

Image is representational - see mfr. specs

E14-50H

ZF Electronic Systems

Snap Action Switch - SPDT - Lever - 25A@125/250VAC 2A@48VDC - Quick Connect - Screw Mount ...

Datasheet
RoHS Compliant
BOX Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

E14-50H is a single pole snap action switch featuring a high ratio lever actuator with double throw (SPDT) circuitry. This switch is rated for 25 A at 125/250 VAC, 1 HP at 125 VAC / 2 HP at 250 VAC, and 2 A at 48 VDC, with a mechanical life of 6000 operations. The high ratio lever actuator provides a maximum operating force of 170 g (0.37 lb), max pre-travel of 13.34 mm (0.525 in), operating point of 11.10 ± 1.57 mm (0.437 ± 0.062 in), and min over-travel of 5.54 mm (0.218 in). Constructed with a phenolic case, copper terminals and moving blade, stainless steel spring, and silver alloy contacts, it operates at temperatures up to 105°C standard with higher temperature versions available. Common applications include household appliances, automated assembly lines, brake switches on utility vehicles, industrial door openers, and vending machines.

Product Highlights:

  • 5 current ratings
  • Choice of actuator styles
  • 3 terminal types (optional screw terminals available — consult factory)
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature 150°C and 200°C available on select models (consult factory)
  • Includes E13, E14, E29, E30 and G13 Series.

Search Keywords: E1450H

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
E14-50H
Alias/AKA:
0E1450H0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
672
Package Type:
BOX
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Steel/Thermoplastic Nylon/Lever
Contact Rating @ Voltage:
1491.4 A
Maximum Movement Differential:
2.03 mm
Operating Force:
1.67 N
Termination Style:
Quick Connect
Dimension:
75.53 x 16.26 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 172

Ships today, if you order in

On Order: 672   can ship 8/12/26

Minimum Order Quantity: 5

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
5
$9.02
25
$6.30
100
$5.77
250
$5.53
672
$5.48
1,344
$5.42
2,688
$5.30
5,376 +
$5.29
