TC7117CPL by microchip technology

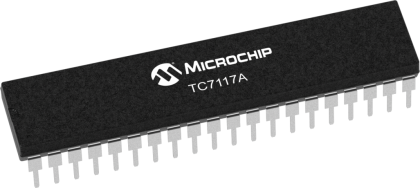

Image is representational - see mfr. specs

TC7117CPL

Microchip Technology

Single Channel ADC - Dual Slope 3 1/2Digit for LED - 40-Pin PDIP - Tube ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TC7117CPL is a high-performance single channel ADC (Analog-to-Digital Converter) featuring dual slope architecture, designed for precision measurement applications. This 3.5 digit converter is specifically tailored for LED display technology, providing clear and accurate readings with a 40-Pin PDIP package housed in a protective tube. Ideal for a wide range of industrial and consumer applications requiring reliable and efficient data conversion.

Search Keywords: TC7117CPL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Microchip Technology
Part No:
TC7117CPL
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8542390090
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
TUBE
Digital Supply Support:
No
Differential Input:
Yes
Differential Nonlinearity:
N/A
Architecture:
Dual Slope
Digital Interface Type:
LED
Dimension:
53.21(Max) x 14.73(Max) x 4.95(Max) mm
Converter Type:
General Purpose

IN STOCK: 180

Can Ship immediately

Manufacturer Stock: 810   can ship 5/4/26

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 4 Weeks can ship 5/20/26

Price (USD)

Qty
Unit Price
10
$7.52
50
$6.77
100
$6.09
250
$6.06
500
$6.03
1,000
$5.99
2,500
$5.96
5,000 +
$5.94
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
