HEAVYCON pin insert - B24 series - 24-pos. - screw connection

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1648296 is a 24-position, HEAVYCON B24 series pin insert. This screw connected pin insert has once connections per position and 24+PE positions. Conductor cross section is 14 to 20 AWG.

Search Keywords: 1648296

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1648296
RoHS:
Yes
HTS:
8536694030
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Rectangular
Mounting:
Panel Mount
Body Orientation:
Straight
Gender:
PL
Pitch:
N/A
Termination Method:
Screw
Number of Contacts:
24
Maximum Voltage Rating:
500 V
Maximum Current Rating:
16 A
Operating Temperature:
-40 to 125 °C

IN STOCK: 49

Can Ship immediately

Manufacturer Stock: 1,516   can ship 12/5/25

Factory Lead-Time 12 Weeks can ship 2/12/26

Price (CAD)

Qty
Unit Price
1
$43.260
3 +
$41.100
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

CP-HC

Coding profile - 4 coding profiles per strip - for insertion in coding keyways

HC-B-3PE

PE multiplier - for three PE connections - for HC-B (besides HC-B..E..ZZ) / HC-BB / HC-DD ...

HC-CB

Coding pin - prevents mismating of up to six connectors with an identical number of positi ...

HC-B-PES

PE screw - for contact inserts HC-B / HC-BB / HC-DD / HC-D40 / HC-D64

HC-B 24-ANDOCK

Docking frame for racks - for contact inserts of B24 type - with four M5 flat headed screw ...

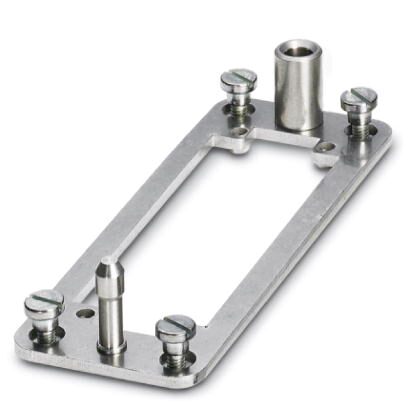

HC-SMR-B24

HEAVYCON connector assembly frame, for contact inserts of type B24

HC-B-ZG

Strain relief clamps contact inserts of series: B- - BB- - D 40 - D 64 - DD and HV - strai ...

HC-B-ZS

Strain relief clamps contact inserts of series: B- - BB- - D 40 - D 64 - DD and HV - later ...

HC-CBU

Coding socket for coding up to 16 connectors

HC-CST

Coding peg for coding up to 16 connectors
