1757116 by phoenix contact
Image is representational - see mfr. specs

1757116

Phoenix Contact

PCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 12 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MSTB 2,5/12-ST-5,08 is a 12-position green pluggable PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This 1757116 terminal block provides individual position coding by inserting coding profiles. It accepts 24 to 12AWG wire range. Green colour insulation Tin contact surface Plug-in direction parallel to the conductor axis Individual position coding by inserting coding profiles Polyamide (PA) insulating material UL94 V-0 flammability rating CSA, VDE, IECEE CB, CCA, EAC and cULus recognized Dimension of terminal block is 18.3mm x 15mm x 60.96mm (L x H x W) 7mm Stripping length Applications Industrial

Search Keywords: 1757116

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1757116
Alias/AKA:
1757116, MSTB-2-5/12-ST-5-08
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5.08 mm
Number of Circuits:
12
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A

IN STOCK: 400

Ships today, if you order in

On Order: 500   can ship 5/22/26

Minimum Order Quantity: 5

Factory Lead-Time 4 Weeks

Price (USD)

Qty
Unit Price
5
$10.33
25
$10.02
50
$9.86
100
$9.29
250
$8.82
500
$8.77
1,000 +
$8.72
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

1733169

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1734634

Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...

0804293

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

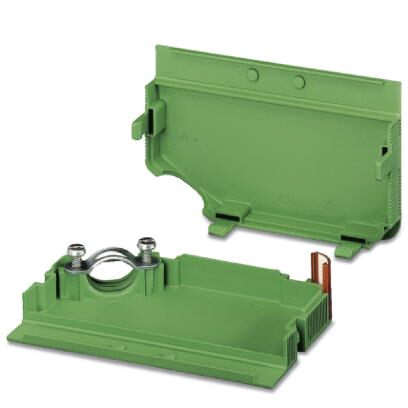

1783818

Cable housing - pitch: 0 mm - number of positions: 12 - dimension a: 60 mm - color: green

1733208

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1733198

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1733185

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1733172

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1051993

Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

0803883

50 Perforated 185.0MM Length Strips White Polyester Self Adhesive Unmarked Pitch As Desire ...

Show 9 More
