1786174

Phoenix Contact

PCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1786174 is a reliable and efficient PCB connector, designed for high-performance electrical connections. With a nominal current of 12 A and a rated voltage of 320 V, it is suitable for a wide range of applications. Featuring a nominal cross section of 2.5 mm², this connector allows for secure and stable connections. It consists of 2 positions and has a pitch of 5.08 mm, ensuring easy installation and compatibility with various PCB layouts. The screw connection with tension sleeve provides a secure and robust connection, minimizing the risk of accidental disconnection. In addition, the connector is in a vibrant green color, making it easily identifiable in complex electrical systems.The contact surface of this connector is coated with tin, ensuring excellent conductivity and resistance to corrosion. This enhances the overall performance and durability of the connector, making it a reliable choice for demanding applications.

Search Keywords: 1786174

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1786174
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5.08 mm
Number of Circuits:
2
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG

IN STOCK: 0

Manufacturer Stock: 29,092   can ship 12/5/25

Minimum Order: 50

Multiple: 50

Factory Lead-Time 4 Weeks can ship 12/18/25

Price (USD)

Qty
Unit Price
50
$3.121
100
$2.936
250
$2.771
500
$2.616
1,000
$2.575
2,500
$2.513
5,000
$2.472
7,500 +
$2.441
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

1755477

Connector Accessories Cap Straight Green

1783779

Cable housing - pitch: 0 mm - number of positions: 8 - dimension a: 40 mm - color: green

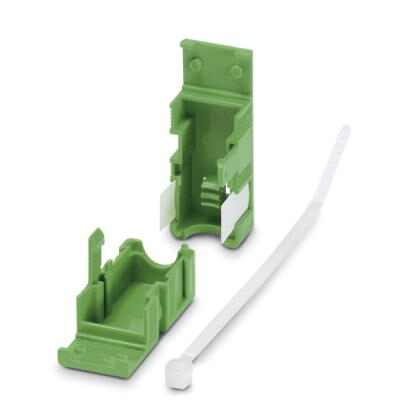

1803934

Cable housing - pitch: 0 mm - number of positions: 2 - dimension a: 10 mm - color: green

0804293

Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

1205053

Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...

1733169

Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

1734401

Coding section - inserted into the recess in the header or the inverted plug - red insulat ...
