1842597

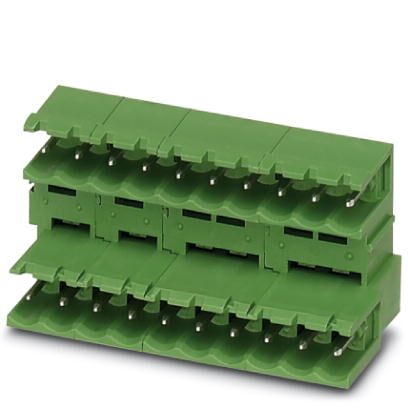

Phoenix ContactPCB headers - nominal current: 10 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.2 mm - Can be aligned! Mounting flange: Order No. 1736771 - 1736768. In combination with MVSTB or FKCV plug components - both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible! ...
DESCRIPTION
This PCB header from PHOENIX CONTACT (part 1842597) is designed for various electronic applications. It has a nominal current rating of 10 A and a rated voltage of 320 V. The header has a nominal cross section of 2.5 mm² and features 10 positions with a pitch of 5.08 mm. It comes in a vibrant green color and has a tin contact surface.For installation, this header is designed for wave soldering. It has a linear pinning layout and solder pins with a diameter of 3.2 mm. Additionally, it can be aligned according to specific requirements.To complete the setup, this PCB header can be used in combination with MVSTB or FKCV plug components. However, it requires the use of both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR). Please note that combination with TMSTBP plug components is not possible.To facilitate mounting, you can order the compatible mounting flanges with the following order numbers: 1736771 or 1736768.Overall, this PCB header provides reliable and efficient connections for your electronic projects while ensuring optimal performance and compatibility with compatible plug components.
Search Keywords: 1842597
SPECIFICATIONS
IN STOCK: 38
Ships today, if you order in
Minimum Order: 5
Factory Lead-Time 7 Weeks
Datasheet
