1843680 by phoenix contact

1843680

Phoenix Contact

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 1843680 is a set of PCB headers designed for reliable electrical connections. With a nominal current rating of 8 A and a rated voltage of 160 V (III/2), these headers are capable of handling a variety of applications. The headers have 10 positions, with a pitch of 3.5 mm, making them suitable for compact PCB designs. They are color-coded in green, allowing for easy identification and organization. The contact surface is coated with tin, ensuring excellent conductivity and corrosion resistance. These headers are designed for wave soldering mounting, providing a secure and efficient installation process. The pin layout follows a linear pinning configuration, further enhancing their versatility and compatibility. The solder pin has a length of 3.4 mm, allowing for easy and efficient soldering. Overall, the PHOENIX CONTACT part 1843680 PCB headers offer excellent electrical performance and ease of installation, making them a reliable choice for a wide range of applications.

Search Keywords: 1843680

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1843680
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.5 mm
Number of Contacts:
10
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A

IN STOCK: 158

Can Ship immediately

Minimum Order: 5

Factory Lead-Time 11 Weeks

Price (CAD)

Qty
Unit Price
5
$7.212
50
$6.003
100
$5.666
300
$5.360
500
$5.284
1,000
$5.145
2,500
$5.068
5,000 +
$4.992
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

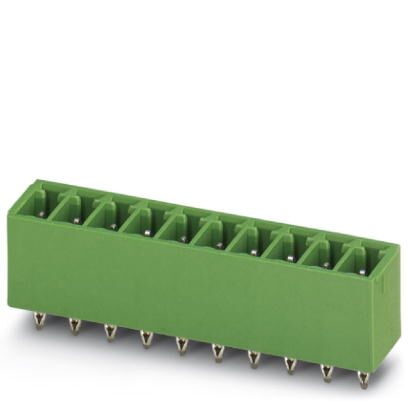

Older Equivalent
1911091
1911091
VIEW PRODUCT
