3044157 by phoenix contact

3044157

Phoenix Contact

Ground modular terminal block - connection method: Screw connection - number of connections: 2 - cross section: 0.2 mm² - 10 mm² - AWG: 24 - 8 - width: 8.2 mm - height: 46.9 mm - color: green-yellow - mounting type: NS 35/7,5 - NS 35/15 ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The UT 6-PE is a 2-position 1-level green/yellow Ground Modular Terminal Block with a polyamide insulator, the M4 screw connection and the NS 35/7,5, NS 35/15 mounting. This 3044144 terminal block accepts 24 to 8AWG wire range. The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section. As well as saving space, the compact design enables user-friendly wiring in a small amount of space. The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section. Optimum screwdriver guidance through closed screw shafts Multi-conductor connection offers maximum flexibility and wiring density 10mm Stripping length UL94V-0 Flammability rating Applications Industrial, Automation & Process Control

Search Keywords: 3044157

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3044157
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Body Orientation:
Straight

IN STOCK: 412

Ships today, if you order in

Minimum Order: 10

Factory Lead-Time 4 Weeks

Price (USD)

Qty
Unit Price
10
$4.975
50 +
$4.728
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

CLIPFIX 35-5

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

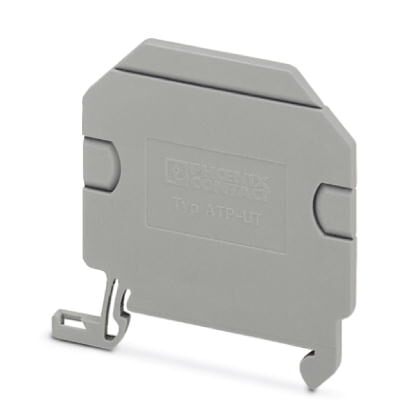

ATP-UT

Partition plate - length: 53.4 mm - width: 2.2 mm - height: 45.7 mm - color: gray

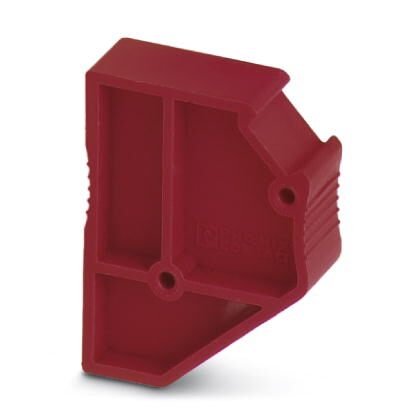

DP PS-8

Spacer plate - length: 22.4 mm - width: 8.2 mm - height: 29 mm - number of positions: 1 - ...

FBS 6-8 BU

Plug-in bridge - pitch: 8.2 mm - width: 47.5 mm - number of positions: 6 - color: blue

FBS 3-8 BU

Plug-in bridge - pitch: 8.2 mm - width: 22.9 mm - number of positions: 3 - color: blue

FBS 10-8 BU

Plug-in bridge - pitch: 8.2 mm - width: 80.3 mm - number of positions: 10 - color: blue

FBSRH 3-8

Short-circuit connector - pitch: 8.2 mm - width: 22.9 mm - number of positions: 3 - color: ...

PAI-4-FIX BU

Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: blue

CLIPFIX 35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

E/NS 35 N

End clamp - width: 9.5 mm - color: gray

FBSR 2-8

Plug-in bridge - pitch: 8.2 mm - width: 14.8 mm - number of positions: 2 - color: red

FBS 3-8

Plug-in bridge - pitch: 8.2 mm - width: 22.9 mm - number of positions: 3 - color: red

FBSR 4-8

Plug-in bridge - pitch: 8.2 mm - width: 31.1 mm - number of positions: 4 - color: red

FBS 5-8

Plug-in bridge - pitch: 8.2 mm - width: 39.3 mm - number of positions: 5 - color: red

FBS 6-8

Plug-in bridge - pitch: 8.2 mm - width: 47.5 mm - number of positions: 6 - color: red

CLIP-PROJECT PROFESSIONAL

Multilingual software for terminal strip configuration. A marking module enables the profe ...

NS 35/15 WH PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 CU UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

PAI-4-FIX BK

Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: black

PAI-4-FIX BN

Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: brown

PAI-4-FIX GN

Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: green

PAI-4-FIX GY

Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: gray

PAI-4-FIX OG

4 mm test adapter - for terminal blocks with 8.2 mm pitch

PAI-4-FIX RD

Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: red

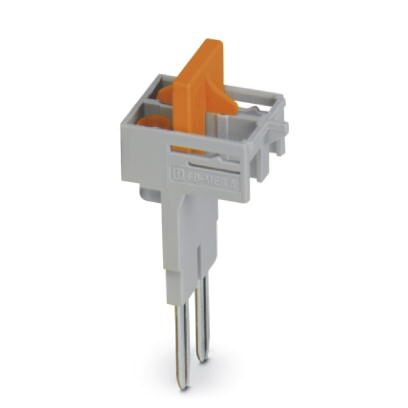

SB-MER 2-8

Switching jumper - pitch: 8.2 mm - length: 24.7 mm - width: 16.4 mm - number of positions: ...

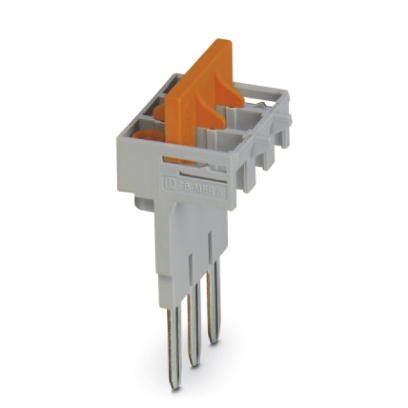

SB-MER 3-8

Switching jumper - pitch: 8.2 mm - length: 24.7 mm - width: 24.6 mm - number of positions: ...

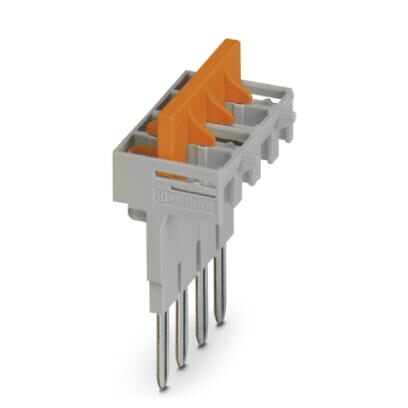

SB-MER 4-8

Switching jumper - pitch: 8.2 mm - length: 24.7 mm - width: 32.8 mm - number of positions: ...

UCT-TM 8

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...

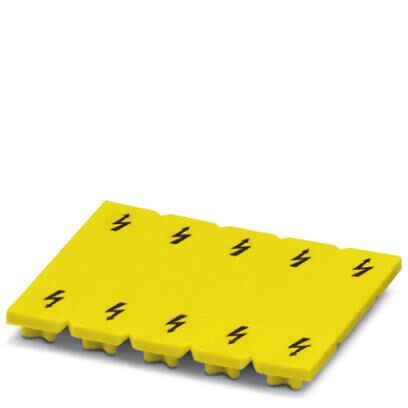

WS UT 6

Warning sign for UT terminal blocks

ZB 8:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: CMS-P1-PLOTTER - PLOT ...

ZB 8 CUS

Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...

NS 35/15 CAP

DIN rail end piece - for DIN rail NS 35/15

FBS 2-8

Plug-in bridge - pitch: 8.2 mm - width: 14.7 mm - number of positions: 2 - color: red

FBS 2-8 BU

Plug-in bridge - pitch: 8.2 mm - width: 14.7 mm - number of positions: 2 - color: blue

FBS 4-8 BU

Plug-in bridge - pitch: 8.2 mm - width: 31.1 mm - number of positions: 4 - color: blue

NS 35/15 PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

NS 35/15 ZN PERF 2000MM

DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

NS 35/15 ZN UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

NS 35/15 AL UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

FBS 10-8

Plug-in bridge - pitch: 8.2 mm - width: 80.3 mm - number of positions: 10 - color: red

FBSRH 2-8

Short-circuit connector - pitch: 8.2 mm - width: 14.7 mm - number of positions: 2 - color: ...

FBSRH 4-8

Short-circuit connector - pitch: 8.2 mm - width: 31.1 mm - number of positions: 4 - color: ...

PAI-4-FIX VT

Test adapter - for 4 mm test plug and terminal blocks with 4.2 mm ... 8.2 mm pitch - color ...

PAI-4-FIX YE

Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: yellow

PAI-4-N GY

4 mm test adapter - for terminal blocks with 5.2 mm - 6.2 mm and 8.2 mm pitch

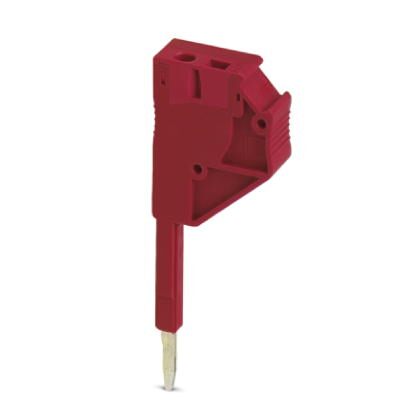

PS-8

Test plugs - color: red

ZB 8,LGS:FORTL.ZAHLEN

Zack marker strip, Strip, white, labeled, can be labeled with: CMS-P1-PLOTTER, Printed hor ...

ZB 8,QR:FORTL.ZAHLEN

Zack marker strip, Strip, white, labeled, can be labeled with: CMS-P1-PLOTTER, Printed ver ...

FBSR 10-8

Plug-in bridge - pitch: 8.2 mm - width: 80.3 mm - number of positions: 10 - color: red

NS 35/15 WH UNPERF 2000MM

DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

FBS 5-8 BU

Plug-in bridge - pitch: 8.2 mm - width: 39.3 mm - number of positions: 5 - color: blue

UC-TM 8

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: BLUEMARK ID ...

FBS 10-8 CT

Plug-in bridge - pitch: 8.2 mm - width: 80.3 mm - number of positions: 10 - color: orange

UC-TM 8 CUS

Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...
