3045583 by phoenix contact
Image is representational - see mfr. specs

3045583

Phoenix Contact

Feed-through terminal block - nom. voltage: 800 V - nominal current: 32 A - connection method: Screw/plug-in connection - number of connections: 2 - cross section: 0.14 mm² - 6 mm² - AWG: 26 - 10 - width: 6.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PHOENIX CONTACT part 3045583 is a versatile feed-through terminal block, designed to provide reliable electrical connections. With a nominal voltage of 800 V and a nominal current of 32 A, it is suitable for a wide range of applications. The connection method is a combination of screw and plug-in connection, ensuring secure and easy installation. This terminal block offers 2 connections and can accommodate a cross section ranging from 0.14 mm² to 6 mm², making it compatible with various wire sizes (AWG 26-10). Measuring 6.2 mm in width and featuring a gray color, it can be easily integrated into your electrical setup. The mounting type for this terminal block is NS 35/7.5 and NS 35/15, allowing for flexible installation options.

Search Keywords: 3045583

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3045583
Alias/AKA:
3045583, UT-4/-1P
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
TR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Body Orientation:
N/A

IN STOCK: 640

Ships today, if you order in

Manufacturer Stock: 26,592   can ship 5/4/26

Minimum Order Quantity: 20

Factory Lead-Time 5 Weeks can ship 5/28/26

Price (USD)

Qty
Unit Price
20
$1.16
50 +
$1.10
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

CLIPFIX-35-5

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

FBS-4-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: blue

FBS-5-6

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: red

FBS-3-6

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: red

FBS-4-6

Plug-in bridge - pitch: 6.2 mm - width: 23.1 mm - number of positions: 4 - color: red

FBS-20-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: blue

E/NS-35-N

Phoenix Contact DIN Rail End Clamp; E/NS 35 N; for 35mm DIN Rail; Screw Terminal; Gray

FBS-2-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: blue

ATP-UT

Partition plate - length: 53.4 mm - width: 2.2 mm - height: 45.7 mm - color: gray

PAI-4-FIX-5/6-YE

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

ZB 6,LGS:GLEICHE ZAHLEN

Zack marker strip, Strip, white, labeled, can be labeled with: CMS-P1-PLOTTER, Printed hor ...

PAI-4-FIX-5/6-BU

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-FIX-5/6-GY

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

PAI-4-FIX-5/6-VT

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

UC-TM-6-CUS

Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...

UCT-TM-6

Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...

ZB-6-CUS

Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...

PAI-4-FIX-5/6-GN

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

UC-TM-6

Terminal Block Marker - White - Blank - Printable - For 6.2mm W TB - 80/Sht

PS-6

Test plugs - color: red

ZB-6:UNBEDRUCKT

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

FBS-10-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 60.3 mm - number of positions: 10 - color: blue

MPS-MT

Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray

PAI-4-FIX-5/6-BN

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

MPS-IH-GN

Insulating sleeve - color: green

NS-35/15-CAP

DIN rail end piece - for DIN rail NS 35/15

MPS-IH-YE

Insulating sleeve - color: yellow

MPS-IH-GY

Insulating sleeve - color: gray

MPS-IH-BK

Insulating sleeve - color: black

MPS-IH-BU

Insulating sleeve - color: blue

MPS-IH-WH

Insulating Sleeve, MPS-IH WH Series | Phoenix Contact 0201663

FBSR-3-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 3 - color: red

FBSR-2-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 2 - color: red

FBSR-10-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 10 - color: red

FBS-50-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 308.3 mm - number of positions: 50 - color: blue

FBS-50-6

Plug-in bridge - pitch: 6.2 mm - width: 308.3 mm - number of positions: 50 - color: red

FBS-2-6

Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red

FBS-20-6

Plug-in bridge - pitch: 6.2 mm - width: 122.3 mm - number of positions: 20 - color: red

CLIPFIX-35

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

FBSR-5-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 5 - color: red

FBSR-4-6

Plug-in bridge - pitch: 6.2 mm - number of positions: 4 - color: red

FBS-3-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 16.9 mm - number of positions: 3 - color: blue

FBS-5-6-BU

Plug-in bridge - pitch: 6.2 mm - width: 29.3 mm - number of positions: 5 - color: blue

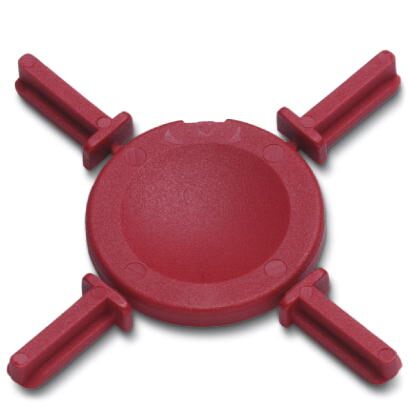

PC
