3046414 by phoenix contact
Image is representational - see manufacturer specifications
Phoenix Contact Authorized Distributor

3046414

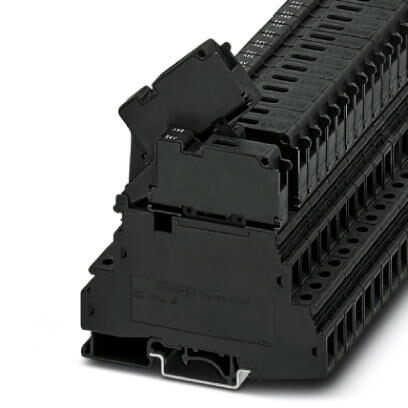

Lever-type fuse terminal block - black - for 6.3 x 32 mm G fuse inserts - with LED for 24 V DC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

Phoenix Contact UT Series Standard Terminal Blocks with screw connections feature maintenance-free conductor connections with the Reakdyn principle. With this principle, terminal block screws are resistant to loosening during high vibration. UT terminal blocks save time when building rail assemblies with snap-on ground blocks using a special PE foot and robust plug-in bridges. Type Disconnect Disconnect Type Fuse, Lever Number of Positions 2 Number of Levels 1 Terminal - Width 8.2mm Termination Style Screw Current - IEC 10A Voltage - IEC 24V Current - UL 16A Voltage - UL 600V Wire Gauge or Range - AWG 8-24 AWG Wire Gauge or Range - mm² 0.2-10mm² Features LED Color Black Fuse Type 6.3mm x 32mm Material - Insulation Polyamide (PA), Nylon

Search Keywords: 3046414

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3046414
Alias/AKA:
3046414
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
PL
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50
Type:
Fuse Terminal Block
Mounting:
DIN Rail
Termination Type:
Screw
Current Rating:
10 A
Voltage Rating:
24 VDC

IN STOCK: 114

Ships today, if you order in

Manufacturer Stock: 1,567   can ship 11/16/26

Factory Lead-Time 5 Weeks can ship 12/9/26
