CES-120-01-T-S by samtec

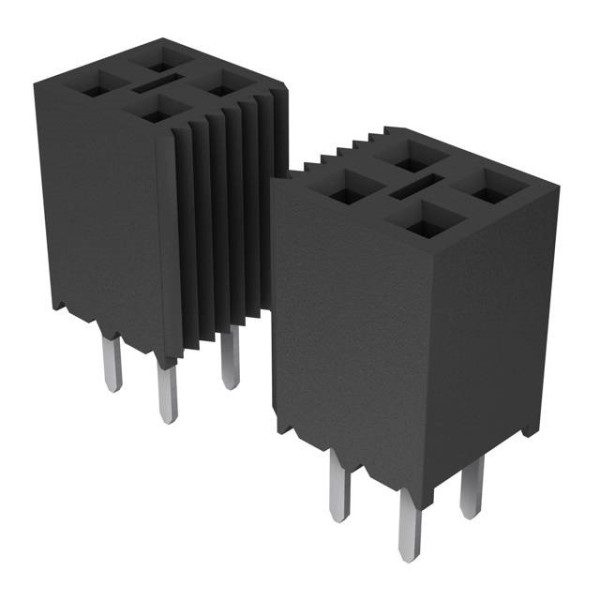

Image is representational - see manufacturer specifications
Samtec Authorized Distributor

CES-120-01-T-S

Board-To-Board Connector - Single - 2.54 mm - 20 Contacts - Receptacle - Through Hole - 1 Rows. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Tube Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The CES-120-01-T-S is a 20-pole 1-row 2.54mm Closed Entry Low Profile Socket Strip with matte tin-plated phosphor bronze contacts and GF polyester insulator. The CES series closed entry low profile socket strip is compatible with TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW and TSM series connectors.

Search Keywords: CES12001TS

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Samtec
Part No:
CES-120-01-T-S
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Tube
Type:
Socket Strip
Body Orientation:
Straight
Gender:
SKT
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
20
Maximum Voltage Rating:
400 VAC
Maximum Current Rating:
5.5/Contact A
Termination Method:
Solder
Operating Temperature:
-55 to 105 °C

IN STOCK: 1,439

Ships today, if you order in

Minimum Order Quantity: 10

Factory Lead-Time 2 Weeks

Price (USD)

Qty
Unit Price
10
$2.83
100
$1.97
250
$1.95
500
$1.72
1,000
$1.30
2,500
$1.24
5,000
$1.23
7,500 +
$1.22
Log in for special pricing Click for Quote Price Match Request
