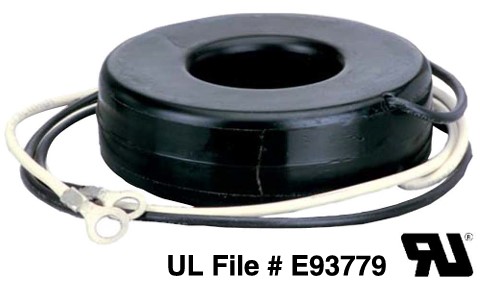

01293 by simpson electric
Image is representational - see manufacturer specifications
Simpson Electric Authorized Distributor

01293

The 01293 is a donut-style current transformer with a 50:5 ampere ratio and a 10:1 turns ratio for current measurement applications. ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 01293 is a donut-style current transformer designed for AC current measurement. It operates with a primary to secondary current ratio of 50:5 and a turns ratio of 10:1. The device maintains an accuracy of 2% with a 2 VA burden. Constructed from durable, impact-resistant black nylon and meeting A.S.A C57.13 standards, it is built for rugged use. It comes equipped with two 2-foot, UL 1015 approved 16 AWG leads for connection, making it suitable for a variety of industrial and commercial metering applications.

Search Keywords: 01293

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Simpson Electric
Part No:
01293
Unit of Measure:
Per Each
RoHS:
No
HTS:
9030333400
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Accuracy:
2 %
Mounting:
Center Single Hole
Operating Temperature:
N/A
Operating Frequency:
N/A
Dimension:
90.4 x 90.4 x 27.9 mm

IN STOCK: 28

Can Ship immediately

Factory Lead-Time 2 Weeks

Price (USD)

Qty
Unit Price
1
$78.82
5
$77.91
10
$77.15
20
$76.95
50
$76.76
100 +
$76.57
