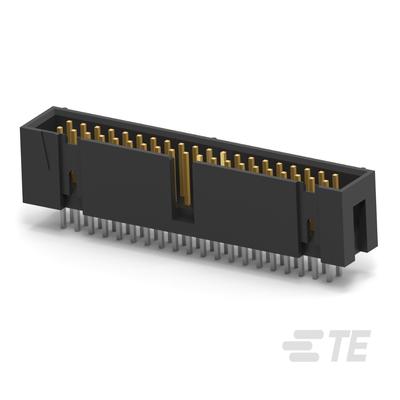

636-4027
636-4027

In Stock: 1,185

Minimum Order: 35

VIEW PRODUCT
1-1761681-3 by te connectivity / amp brand
Image is representational - see mfr. specs

1-1761681-3

TE Connectivity / AMP Brand

IDC LOW PRO HDR 40P VERT HT BLACK ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1-1761681-3 is a vertical header assembly connector designed for printed circuit board applications. It features 40 contact positions with a standard 2.54 mm (0.100 inch) pitch spacing, providing reliable interconnection for electronic assemblies. The housing is constructed from polyetherimide (PCT) material with UL94V-0 flame rating in black color, while the posts are made of phosphor bronze with precision plating: 0.00038 mm minimum gold on the mating area, 0.00254 mm minimum tin on the solder end, and 0.00127 mm minimum nickel overall. The connector has a total length of 48.26 mm (1.900 inches) and mounting hole diameter of 1.02 mm (0.040 inches). This assembly is commonly used in industrial control systems, telecommunications equipment, and computer peripherals where robust vertical interconnection and high-density contact arrangements are required.

Product Highlights:

  • Connector Type = Pin Header
  • Low Profile
  • Number of Positions = 40
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical

Search Keywords: 117616813

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-1761681-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Tray
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
40
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C

IN STOCK: 207

Ships today, if you order in

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 23 Weeks

Price (USD)

Qty
Unit Price
50
$3.80
100
$3.72
250
$3.64
500
$3.56
1,000
$3.52
2,500
$3.48
5,000
$3.18
7,500 +
$3.17
