163081-8 by te connectivity / amp brand

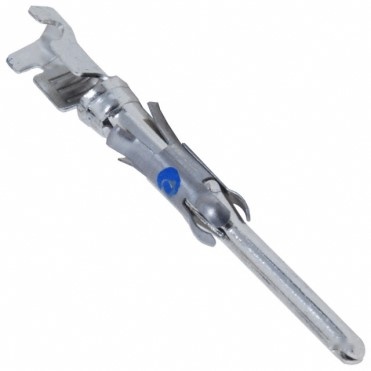

Image is representational - see manufacturer specifications

163081-8

TE Connectivity / AMP Brand

Pin Contact - Multimate III+ Series - 16 to 18 AWG - Brass Contact with 196.9µin (5.00µm) Tin Finish - Crimp Termination. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 163081-8 from TE Connectivity / AMP Brand is pin contact Multimate III+ series for wire range from 16 to 18 AWG and crimp termination. This contact is made of brass and has 196.9µin (5.00µm) thick tin finish. Operating temperature range is from -55 to 90 °C ( -67 to 194 °F ).

Product Highlights:

  • Pin
  • Tin Contact Mating Area Plating
  • Wire Range = 0.75-1.50² [18.5-15.5] mm [AWG]
  • Insulation Diameter = 2.01 - 2.49 mm
  • Brass Contact Material

Search Keywords: 1630818

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
163081-8
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
PL
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
5000
Package Type:
REEL
Contact Type:
Signal
Gender:
Pin
Contact Size:
16
Wire Size:
15-18 AWG
Contact Material:
Brass
Contact Plating:
Tin
Maximum Current Rating:
N/A
Termination Method:
Crimp
  Different packaging options available.  See Alternatives
  Possible Replacement options available.  See Alternatives

IN STOCK: 3,934

Ships today, if you order in

MOQ for In Stock Qty: 500

MOQ for out of Stock Qty: 3750

Factory Lead-Time 31 Weeks

Price (USD)

Qty
Unit Price
500
$0.4192
1,000
$0.4110
2,500
$0.4029
3,750
$0.3989
7,500
$0.3979
11,250
$0.3970
15,000 +
$0.3959
