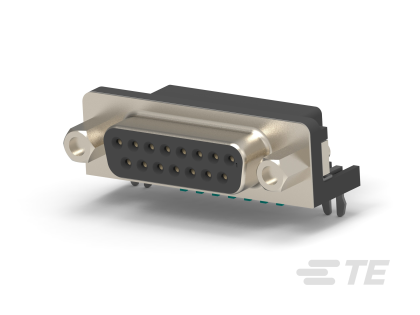

2311767-1
2311767-1

In Stock: 705

Minimum Order: 2,500

VIEW PRODUCT
1734355-1 by te connectivity / amp brand
Image is representational - see mfr. specs

1734355-1

TE Connectivity / AMP Brand

HD20,15P,318 RA,RCPT,AU FLSH ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1734355-1 is a 15-position AMPLIMITE subminiature D-Sub receptacle connector designed for PCB board mounting with 4-40 threaded inserts. The connector features a shell size of 1.540 inches (39.20 mm) in length with contact finish option B, which includes 0.000015 inches (0.00038 mm) minimum gold plating on the mating area and 0.000100 inches (0.00254 mm) minimum tin plating on solder tails with an overall 0.000050 inches (0.00127 mm) minimum nickel underplate. The housing is constructed from 94V-0 rated flame-retardant thermoplastic material with a low carbon steel nickel-plated shell, and the contacts are made from brass or phosphor bronze. This connector is ideal for applications requiring reliable signal transmission in compact electronic assemblies, data acquisition systems, and industrial control equipment where space constraints and robust interconnection are essential.

Product Highlights:

  • Number of Positions = 15
  • Receptacle
  • PCB Mount Angle = Right Angle
  • Product Series = HD 20
  • With Mating Connector Lock

Search Keywords: 17343551

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1734355-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Tray
Type:
D-Subminiature
Body Orientation:
Right Angle
Mounting:
Through Hole
Gender:
SKT
Termination Method:
Solder
Shell Size:
2
Number of Contacts:
15
Contact Plating:
Gold over Nickel
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 541

Ships today, if you order in

Minimum Order Quantity: 40

Price (USD)

Qty
Unit Price
1
$1.801
40
$1.638
200
$1.617
400
$1.576
800
$1.555
3,920
$1.524
5,000
$1.277
10,000 +
$1.123
