176143-2 by te connectivity / amp brand

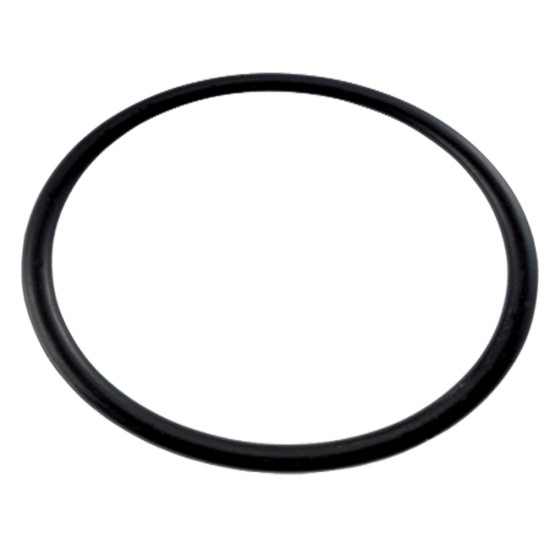

Image is representational - see mfr. specs

176143-2

TE Connectivity / AMP Brand

187 CAP HSG ASSY 2P BLACK ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

176143-2 is a pin contact designed for use in TE Connectivity's Econoseal J Series Mark II sealed connector system for automotive applications. The contact is manufactured from brass (CuZn) with a pre-tin plated finish and accommodates wire sizes ranging from 0.20–1.25 mm² (AWG 24–16) with insulation diameters of 1.4–2.6 mm. The Econoseal connector series provides waterproof protection and rugged construction, making it suitable for extreme environmental conditions including exposure to moisture, dust, and corrosive substances. Typical applications include sensor wiring under motor hoods and connections to electrical control systems in harsh automotive environments.

Product Highlights:

  • Housing
  • Housing Type = Receptacle (Cap)
  • Color = Black
  • Number of Positions = 2
  • Terminate To Wire

Search Keywords: 1761432

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
176143-2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Bag
Hybrid Connector:
No
Cable Exit Angle:
180
Terminal Position Assurance:
Yes
Primary Locking Feature:
Integrated in Housing
Connector Style:
Housing for Male Terminals
Operating Voltage:
13 VDC
Length:
1.772 in, 45 mm
Packaging Method:
Bag
Circuit Application:
Signal
Serviceable:
Yes
Polarized:
Yes
Number of Rows:
1
UL Flammability Rating:
UL 94V-2
Number of Positions:
2
Operating Temperature Range:
-22 � 221 �F, -30 � 105 �C
Height:
.949 in, 24.1 mm
Mating Tab Width:
.189 in, 4.8 mm
Mounting Feature:
Without
Connector System:
Wire-to-Wire
Body Material:
PBT
Nominal Voltage Architecture:
12 V
Packaging Quantity:
50
Strain Relief:
No
Sealable:
Yes
Width:
.917 in, 23.3 mm
Connector Position Assurance Capable:
No
Centerline (Pitch):
.311 in, 7.9 mm
Color:
Black

IN STOCK: 175,990

Can Ship immediately

MOQ for In Stock Qty: 100

MOQ for out of Stock Qty: 100

Multiple: 50

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
100
$1.56
250
$1.55
500
$1.16
750
$1.09
1,000 +
$1.07
