5499910-2 by te connectivity / amp brand

5499910-2

TE Connectivity / AMP Brand

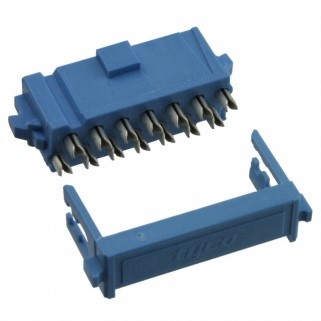

Connector Header Through Hole 14 position 0.100" (2.54mm) ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

TE Connectivity AMP-LATCH connectors are wire-to-board devices used to make the transition between cable and PC board circuitry. The mass termination capabilities of the AMP-LATCH family of connectors have made ribbon cable popular within the Electronics Industry. The ability to terminate up to 64 conductors simultaneously, without stripping or otherwise preparing the cable, saves labor. Number of Positions 14 Number of Rows 2 Row Spacing - Mating 0.100" (2.54mm) Number of Positions Loaded All Style Board to Cable/Wire Shrouding Shrouded - 4 Wall Mounting Type Through Hole Termination Solder Fastening Type Latch Lock/Eject Hooks, Short Overall Contact Length 0.639" (16.23mm) Insulation Height 0.549" (13.94mm) Contact Shape Square Contact Finish - Mating Gold or Gold-Palladium Contact Finish Thickness - Mating 15.0µin (0.38µm) Contact Finish - Post Tin Features Keying Slot, Mounting Flange Operating Temperature -55°C ~ 105°C

Product Highlights:

  • Connector Type = Universal Ejection Pin Headers
  • Standard Profile
  • Number of Positions = 14
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical

Search Keywords: 54999102

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
5499910-2
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
64
Package Type:
Tray
Type:
Ejector Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
14
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C

IN STOCK: 1,455

Ships today, if you order in

Minimum Order: 64

Multiple: 64

Factory Lead-Time 2 Weeks

Price (USD)

Qty
Unit Price
64
$2.029
128
$1.988
256
$1.967
512
$1.916
1,024
$1.844
2,560
$1.833
5,056 +
$1.823
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

1658526-8

Rectangular Connector - Receptacle - Female Socket - 14 Position - 2 Rows - 0.100" (2.54mm ...

1658527-5

622-1430LF FEM SOCKT,LEAD FREE

1-1658528-2

636-1430LF=FEM SKT BLADE POL 1

1658620-2

14 NOVO MIL 15DP, LEAD FREE

1658621-2

This preassembled Novo Receptacle from TE is intended for use with Strain Relief carrying ...

1658622-2

Wire-To-Board Connector - 2.54 mm - 14 Contacts - Receptacle - AMP-LATCH Novo Series - IDC ...

1658623-2

14 NOVO MIL 30DP, LEAD FREE

1658624-2

014 NOVO DUAL 30DP FT

Show 6 More
