5747846-5 by te connectivity / amp brand

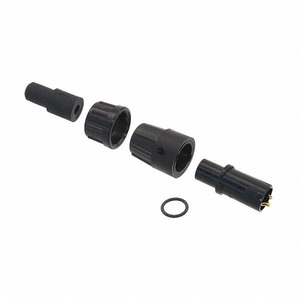

Image is representational - see mfr. specs

5747846-5

TE Connectivity / AMP Brand

25 MSFL RCPT RA 318 (SL,FM,BL) ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

5747846-5 is a right-angle posted subminiature D connector receptacle designed for high-density interconnect applications. It features 25 contact positions with shell size 3, duplex gold-plated contacts (0.000030 inch gold on mating end with tin on termination end and nickel underplate), and is preloaded with size 20 DF posted socket contacts. The connector is mounted with boardlocks and fixed female screwlocks, with dimensions of 2.088 inches (53.04 mm) length (A), 1.852 inches (47.04 mm) width (B), and 0.230 inches (5.84 mm) height (D). This connector is recognized under UL Component Program (File No. E28476) and certified by Canadian Standards Association (File No. LR 7189), making it suitable for industrial and telecommunications applications requiring reliable, compact interconnections with recommended PCB board thickness of 0.062 inches (1.58 mm).

Product Highlights:

  • Number of Positions = 25
  • Receptacle
  • PCB Mount Angle = Right Angle
  • Product Series = HD 20
  • With Mating Connector Lock

Search Keywords: 57478465

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
5747846-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
65
Package Type:
Tray
Type:
D-Subminiature
Body Orientation:
Right Angle
Mounting:
Through Hole
Gender:
SKT
Termination Method:
Solder
Shell Size:
3
Number of Contacts:
25
Contact Plating:
Gold over Nickel
Operating Temperature:
-55 to 105 °C

IN STOCK: 163

Can Ship immediately

Minimum Order Quantity: 65

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
65
$3.095
130
$2.710
260
$2.331
520
$2.311
1,040
$2.276
2,535
$2.261
5,005
$2.256
7,540 +
$2.250
Suppliers Standard Package
