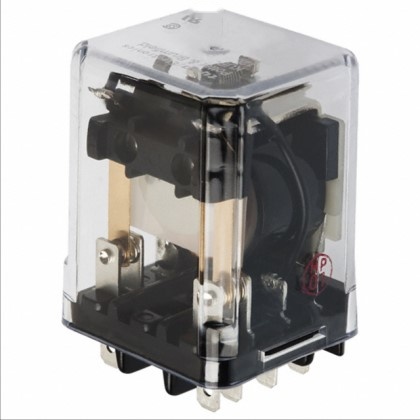

KUP-14D15-48 by te connectivity / p-b brand

KUP-14D15-48

TE Connectivity / P&B Brand

Power Relay 48VDC 10A 3PDT(38.9x35.7x50)mm Socket ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / P&B brand part KUP-14D15-48 is a high-quality Power Relay designed for reliable performance in various applications. This 3PDT (3 Form C) relay features a compact and durable design, measuring 38.9x35.7x50 mm. It is capable of switching up to 10A of current at 48VDC, making it an ideal choice for a wide range of power control and automation tasks. The relay comes with a compatible socket, ensuring easy and secure installation. Trust this TE Connectivity / P&B power relay for efficient and long-lasting operation in your electrical and electronic systems.

Product Highlights:

  • KUP Series
  • Contact Arrangement = 3 Form C, 3PDT, 3 C/O
  • Contact Current Rating = 10 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: KUP14D1548

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KUP-14D15-48
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
48 V
Contact Arrangement:
3PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
0.187Quick Connect/Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
1.8 KOhm

IN STOCK: 149

Can Ship immediately

Factory Lead-Time 18 Weeks

Price (CAD)

Qty
Unit Price
1
$43.520
10
$37.425
25
$35.205
50
$33.827
100
$32.663
250
$31.192
500 +
$31.039
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
