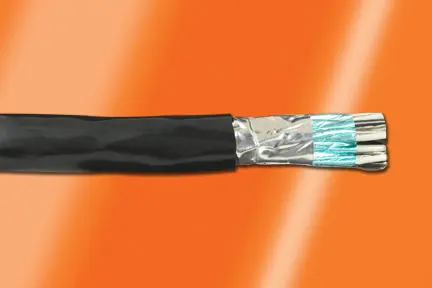

Image is representational - see mfr. specs

6376-SL005

Name: 6376-SL005
Brand: Alpha Wire
SKU: 10130149
Price: 357.25 USD
Availability: InStock

Multi-Conductor Cable Tape Semi Rigid Polyvinyl Chloride 10 Conductors 22AWG 8.33mm 300VAC - Slate - 30.48m (100ft)/Spool ...

Fiche technique

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 6376-SL005 is a 5-pair shielded twisted-pair cable designed for control and instrumentation applications requiring reliable signal transmission. Each pair consists of 22 AWG (7/30) tinned copper conductors with 0.010" nominal PVC insulation, twisted at 8.0 twists/foot minimum, and the five pairs are cabled together at 3.7 twists/foot minimum. The cable features an aluminum/mylar tape shield with 25% overlap and tinned copper braid at 65% coverage minimum, with a 24 AWG tinned copper drain wire, all enclosed in a 0.032" nominal PVC jacket with slate color. Electrical characteristics include a 300 V RMS voltage rating, 70 O characteristic impedance, and a conductor DC resistance of 16.5 O/1000 ft at 20°C. The cable operates over a temperature range of -20 to 80°C, supports a maximum pull tension of 63 lbs, and complies with UL AWM/STYLE 2464, CSA CMG/FT4, and EU RoHS Directive 2011/65/EU standards. This construction makes it ideal for industrial control systems, data acquisition, and shielded signal distribution where EMI rejection and signal integrity are essential.

Product Highlights:

Potential Applications:

Search Keywords: 6376SL005

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

Alpha Wire

Référence:

6376-SL005

Alias/AKA:

6376-SLATE-100

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
