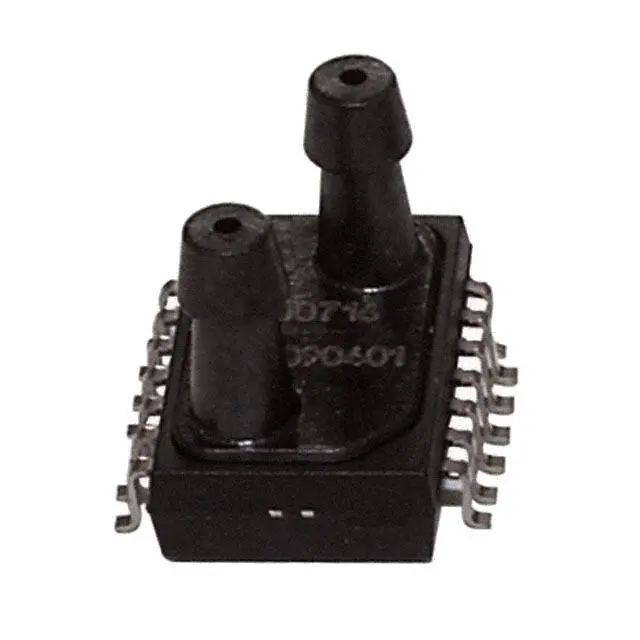

NPA-500B-001G by amphenol advanced sensors/nova sensor
Image is representational - see mfr. specs

NPA-500B-001G

Amphenol Advanced Sensors/Nova Sensor

Pressure Sensor - Vented Gauge - 0 to 1 PSI (+/-) 1.5 %FS - Amplified output, compensated - Analog voltage - 0.5 V to 4.5 V - 5VDC - -40°C to 125°C - SOIC-14 - Gull Wing (SMD) - Barbed Port - Male 0.12" (3mm) tube, dual ...

Fiche technique
RoHS Compliant
REEL Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

NPA-500B-001G is a calibrated surface-mount pressure sensor featuring amplified analog output with 5V DC excitation and a 1 PSI (7 kPa) full-scale pressure range. The sensor is packaged in a SOIC14 surface-mount configuration with dual barbed ports for gauge, absolute, and differential pressure applications. It delivers an offset voltage of 0.44 to 0.56 V and a span of 4 V, with total error band accuracy of ±1.5% FSO and proof pressure capability of 60 psi. The sensor operates over a temperature range of -40°C to 125°C and includes an on-chip temperature sensor in digital mode variants. This compact, cost-effective solution is ideal for printed circuit board mounting and is delivered in tape and reel form for simplified manufacturing handling in applications requiring calibrated pressure measurement.

Search Keywords: NPA500B001G

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
Amphenol Advanced Sensors/Nova Sensor
Référence:
NPA-500B-001G
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
9026204000
COO:
TH
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
100
Package Type:
REEL

EN STOCK: 25

Peut être expédié immédiatement

Commande min Quantitè: 10

DÉLAI DE L'USINE 17 Weeks

PRICE (USD)

QTÉ
Prix unitaire
10
$24.12
25
$23.76
50
$23.25
100
$22.78
300
$22.35
500
$17.16
1 000 +
$13.49
Reel Package
