99-5682-75-07

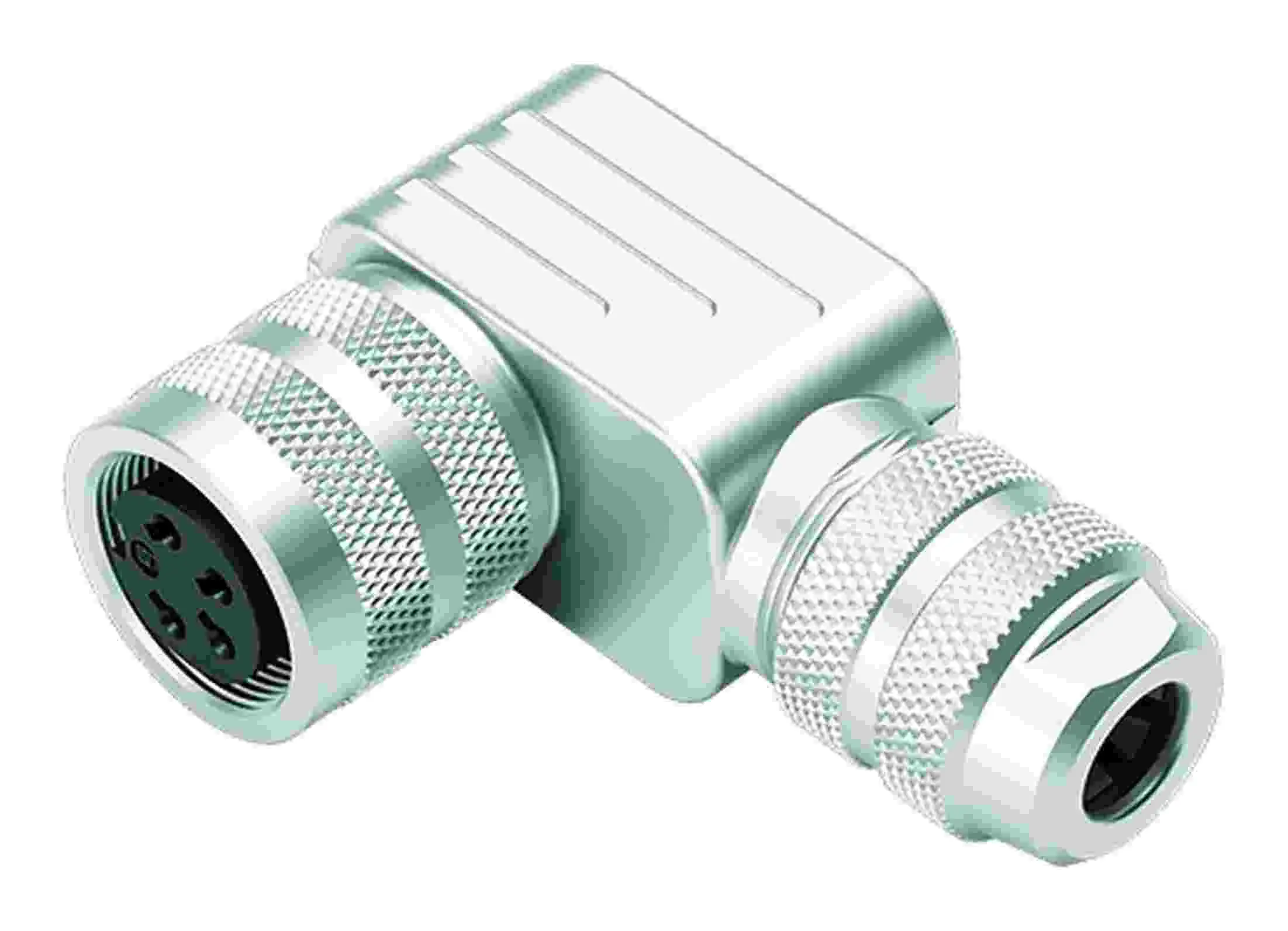

M16 IP67 Female angled connector, Contacts: 7 (07-b), 6.0-8.0mm, shieldable, solder, IP67, UL ...
DESCRIPTION
The 99-5682-75-07 is an M16 female angled connector from the series 423 designed for miniature connector applications requiring sealed, shielded connections. It features 7 contacts (07-b) with a cable outlet range of 6.0–8.0 mm, solder termination, and IP67 degree of protection with shieldable EMC compliance via a shielding ring. The connector operates at a rated voltage of 60 V with a rated impulse voltage of 800 V, supports a rated current of 5.0 A per contact, and maintains an insulation resistance of =10¹° O. It is rated for operating temperatures from -30 °C to +95 °C and withstands more than 500 mating cycles, with a maximum connection cross-section of 0.75 mm² (AWG 18). The angled design offers 90° twistability with 4 coding options, and the connector uses a screw locking system for secure coupling. Common applications include plant engineering, control systems, and electrical equipment construction where compact, sealed, and shielded connections are required.
Mots-clés de recherche: 9956827507
SPÉCIFICATIONS
EN STOCK: 0
Quantité minimale de commande: 5
DÉLAI DE L'USINE 6 Semaines
Prix (USD)
Outils/Modèles 3D
ressources
Fiche technique
