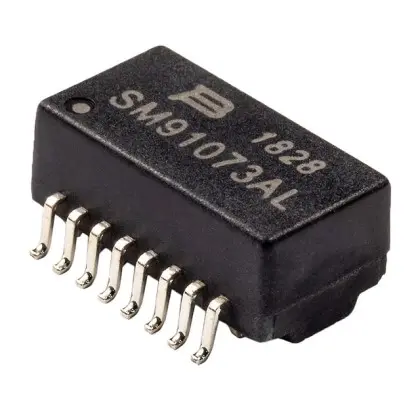

SM91073AL-E
SM91073AL-E

en stock: 3 533

Commande min: 3 000

Afficher le produit
SM91072AL-E by bourns

SM91072AL-E

Bourns

The SM91072AL-E is an AEC-Q200 compliant, single-port 10/100 Base-T LAN transformer designed to meet IEEE 802.3u standards. ...

Fiche technique
RoHS Compliant
REEL Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantie du certificat de conformité

DESCRIPTION

The SM91072AL-E is an AEC-Q200 compliant 10/100 Base-T transformer designed for Ethernet applications. It meets IEEE 802.3u standards and features a turns ratio of 1:1 (±2%) for both transmit and receive channels, with a minimum Open Circuit Inductance (OCL) of 350 µH under an 8 mA DC bias. The device offers a low insertion loss of -1.1 dB maximum from 1-100 MHz and provides high isolation rated at 1500 Vrms. Due to its expanded operating temperature range of -40 to +125 °C and AEC-Q200 compliance, this transformer is well-suited for automotive and industrial applications requiring robust network connectivity.

Search Keywords: SM91072ALE

SPÉCIFICATION

Attribut du produit
Valeur de l'attribut
Sélectionner un attribut
Produits trouvés : 0
fournisseur:
Bourns
Référence:
SM91072AL-E
Unité de mesure:
Par Each
RoHS:
Yes
HTS:
8504312000
COO:
CN
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
3000
Package Type:
REEL
  Possible Replacement options available.  See Alternatives

EN STOCK: 20

Expédition today, if you order in

Buy all 20 in-stock or the regular minimum order quantity of 100

sur commande: 3 000   Peut expédier 9/28/26

Stock lot only: 20

Commande min Quantitè: 100

DÉLAI DE L'USINE 16 Weeks

Prix (USD)

QTÉ
Prix unitaire
1
$3.331
100
$3.028
250
$2.874
500
$2.750
1 000
$2.699
3 000
$2.596
6 000
$2.585
9 000
$2.575
12 000 +
$2.565
Reel Package
