SRN5020-5R6M by bourns
Image is representational - see mfr. specs

SRN5020-5R6M

Bourns

Inductor Power Semi-Shielded Wirewound 5.6uH 20% 100KHz 11Q-Factor Ferrite 1.8A 106mOhm DCR 2020 T/R ...

Fiche technique
RoHS Compliant
REEL Emballage
ACCESSOIRES
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

SRN5020-5R6M is a semi-shielded power inductor from Bourns designed for high-current DC/DC converter applications. It features an inductance of 5.6 µH with ±20% tolerance, a maximum DC resistance of 0.106 O, and a rated RMS current of 1.80 A with a saturation current of 1.80 A. The component has a self-resonant frequency of 28 MHz at a test frequency of 7.96 MHz, and operates reliably over a temperature range of -40°C to +125°C with a maximum component height of 2.0 mm. This inductor is ideal for notebook computers, digital video cameras, televisions, and LCD displays, offering RoHS compliance and halogen-free construction for environmentally conscious applications.

Search Keywords: SRN50205R6M

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
Bourns
Référence:
SRN5020-5R6M
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
MY
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
2000
Package Type:
REEL
Inductance:
5.6 uH
Type:
Power
Impedance:
N/A
Tolerance:
20 %
Technology:
Wirewound
Maximum DC Current:
1.8 A
Maximum DC Resistance:
106 mOhm
Operating Temperature:
-25 to 120 °C
Packaging:
Tape and Reel
Protection Style:
Semi-Shielded
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

EN STOCK: 10,000

Peut être expédié immédiatement

Commande min Quantitè: 2000

Multiple: 2000

PRICE (USD)

QTÉ
Prix unitaire
2 000
$0.4931
4 000
$0.4829
6 000
$0.4805
8 000
$0.4780
10 000
$0.4710
26 000
$0.4592
50 000
$0.4569
100 000 +
$0.4227
Reel Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
Remplacement recommandé

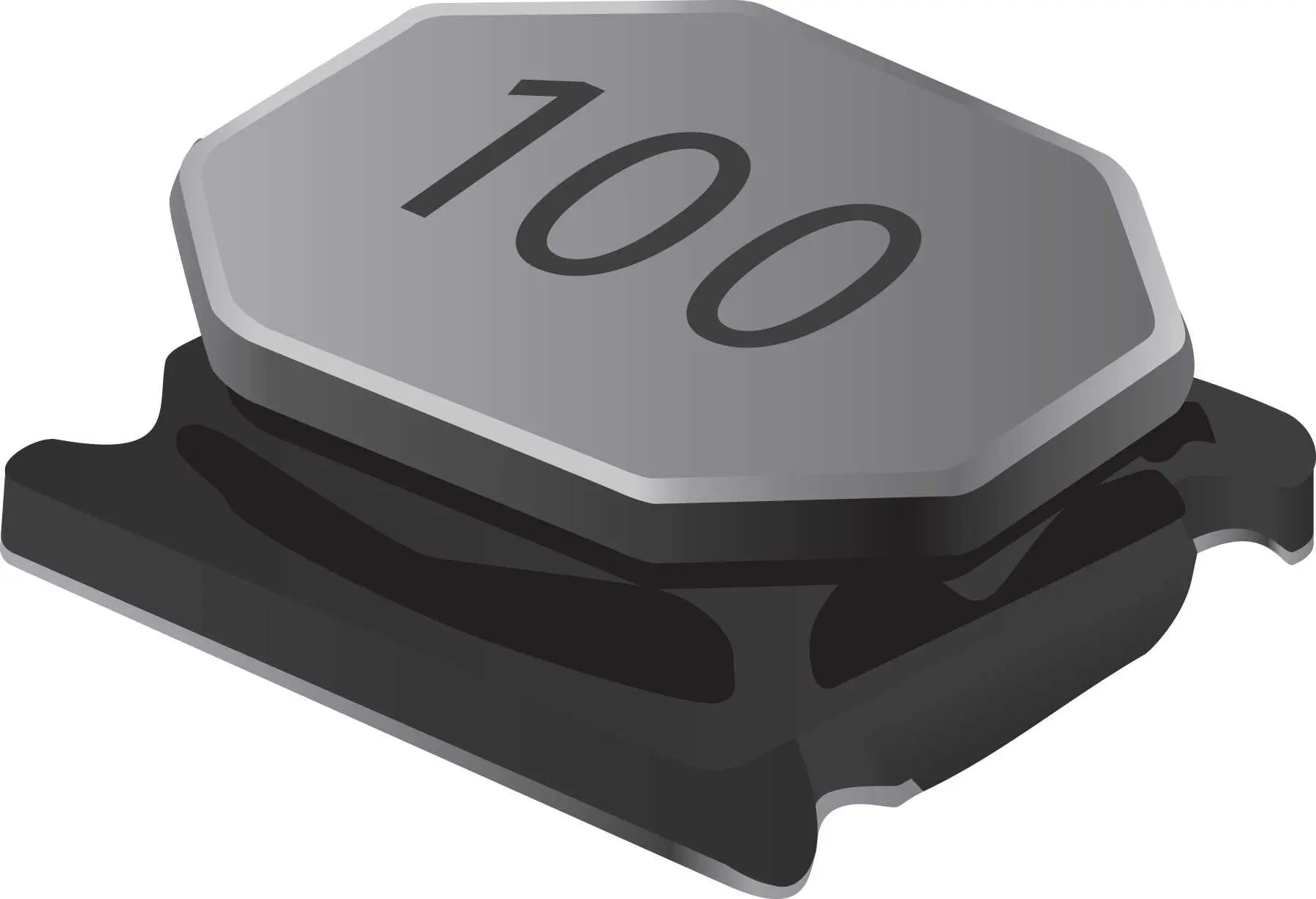

SRN5020TA-5R6M
SRN5020TA-5R6M
VIEW PRODUCT
