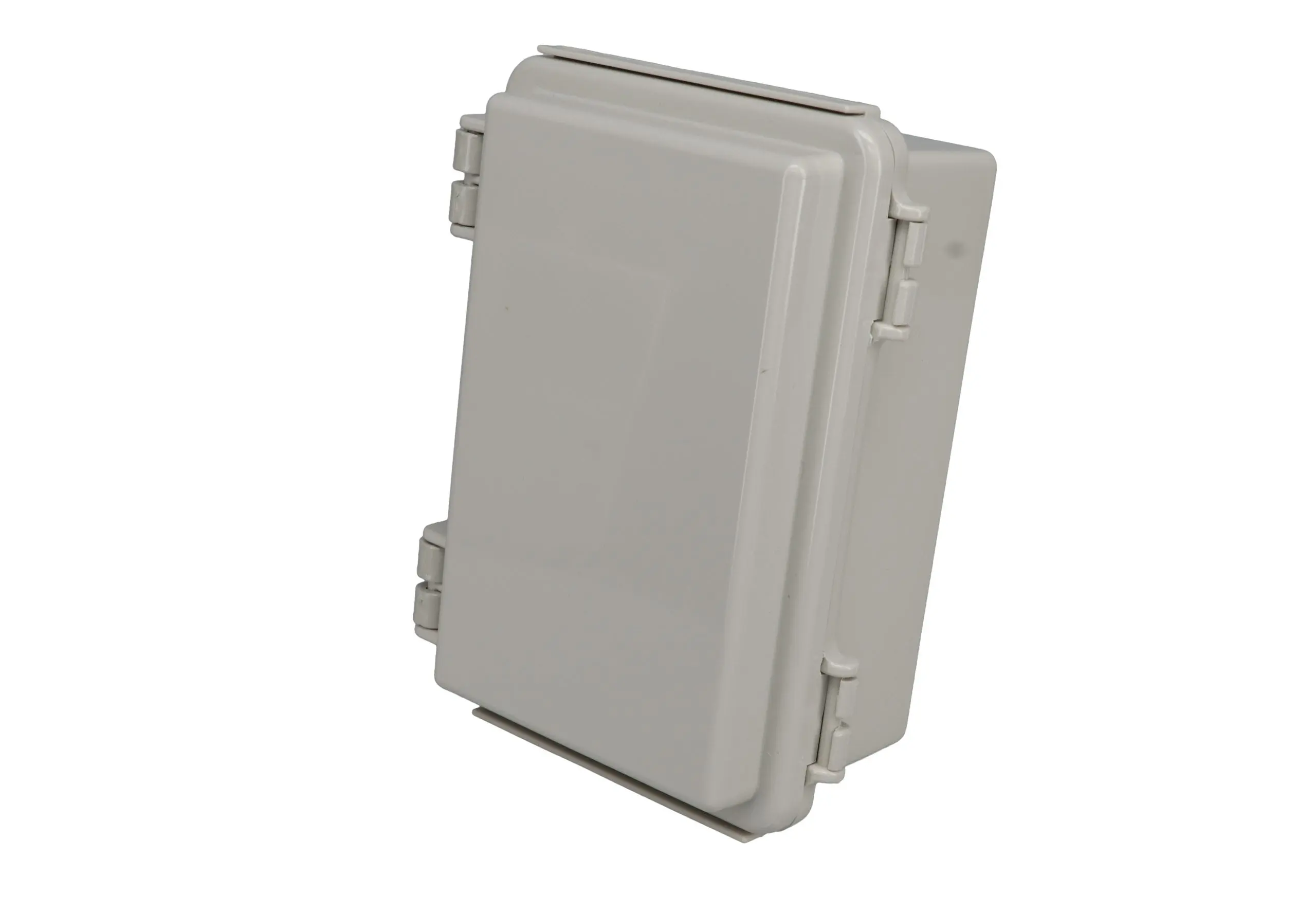

Image is representational - see mfr. specs

NBF-32004

Name: NBF-32004
Brand: Bud Industries
SKU: 42871955
Price: 58.75 USD
Availability: InStock

Bud Industries

Light Gray ABS Wall Mount NEMA Box - External 5.9 x 3.92 x 2.78 Inches - Internal 5.12 x 3.11 x 2.27 Inches ...

Fiche technique

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

NBF-32004 is a plastic NEMA enclosure box from the NBF Series designed for indoor applications. It features an ABS body and ABS cover with a light gray finish, and is equipped with plastic latches and hinges along with stainless steel wall mounting brackets and hardware. The enclosure measures 5.90 in (150.00 mm) x 3.917 in (99.50 mm) with inside dimensions of approximately 5.177 in (131.51 mm) maximum length and 5.115 in (129.93 mm) minimum length. The unit meets NEMA 1, 2, 4, 4X and IEC529-IP65 standards, with a continuous operating temperature range of -40°C to +60°C. This enclosure is ideal for protecting electronic components in indoor industrial and commercial environments where dust and water ingress protection is required.

Product Highlights:

Potential Applications:

Search Keywords: NBF32004

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

Bud Industries

Référence:

NBF-32004

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

8538100000

COO:

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
