PN-1321-MB

Bud Industries

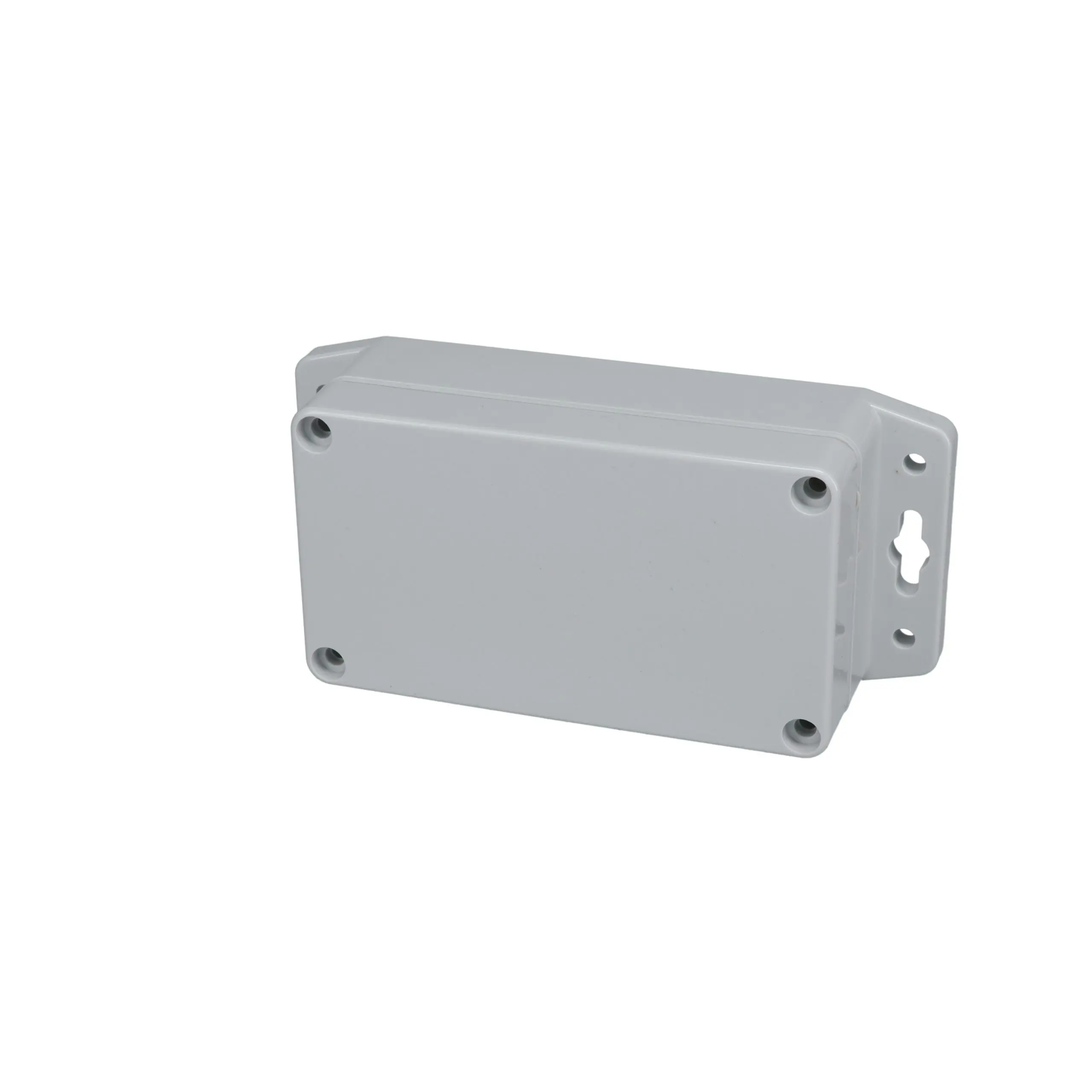

Gray Polycarbonate Wall Mount Box - External 4.53 x 2.56 x 1.58 Inches - Internal 4.16 x 2.32 x 1.36 Inches ...

Fiche technique

RoHS Compliant

Certificate of Compliance Guarantee

360 Image

DESCRIPTION

The PN-1321-MB is a NEMA 4X plastic enclosure box equipped with an external mounting bracket, designed for outdoor and harsh environment protection. The enclosure features a silicone sponge gasket for environmental sealing and includes four threaded brass inserts (M4x0.7) for secure internal component mounting. The body dimensions are 5.118 inches (130 mm) in width and 5.709 inches (145 mm) in height, with a depth of 4.528 inches (115 mm), providing adequate space for electrical components and controls. The box accepts M4 or #8 pan head screws for external mounting, and includes mounting bosses that accommodate M3 x 4mm or #4 x 3/16" self-tapping screws. This NEMA 4X rated enclosure is ideal for outdoor installations, wet environments, and applications requiring corrosion resistance and IP66/IP67 equivalent protection.

Product Highlights:

Potential Applications:

Search Keywords: PN1321MB

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

Bud Industries

Référence:

PN-1321-MB

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

8538100000

COO:

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
