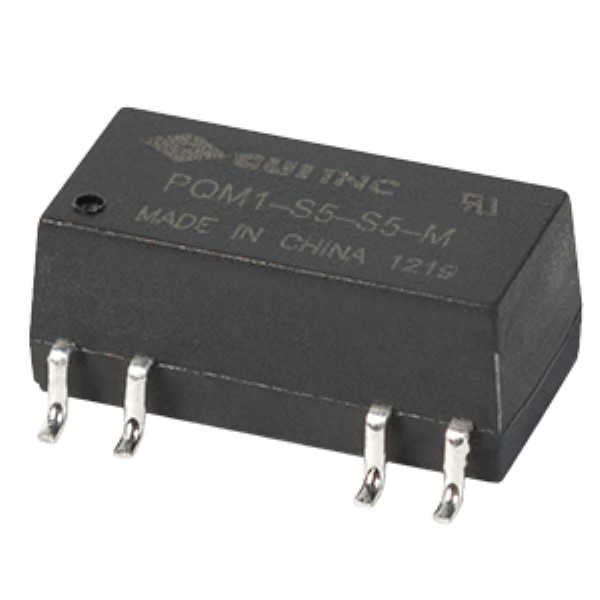

Image is representational - see mfr. specs

PCN1-S5-S12-M-TR

The PCN1-S5-S12-M-TR is a 1W isolated, single-output, unregulated DC-DC converter that converts a nominal 5 Vdc input to a 12 Vdc output. ...

Fiche technique

RoHS Compliant

Reel Emballage

Certificate of Compliance Guarantee

DESCRIPTION

The PCN1-S5-S12-M-TR is a surface-mount DC-DC converter designed to provide 1W of isolated output power. It operates from a nominal 5 Vdc input, within a 4.5 to 5.5 Vdc range, to deliver a single 12 Vdc output at a maximum current of 84 mA. This model features a typical efficiency of 79%, 1,500 Vdc isolation, and low ripple and noise with a maximum of 75 mVp-p. Housed in an industry-standard SMT package and capable of operating in temperatures from -40 to 100°C, it is well-suited for industrial controls, instrumentation, and other applications requiring board-level power conversion.

Product Highlights:

Potential Applications:

Search Keywords: PCN1S5S12MTR

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

CUI Inc.

Référence:

PCN1-S5-S12-M-TR

Alias/AKA:

PCN1-S5-S12-M-TR

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

8504409580

COO:

ECCN:

EAR99

Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
