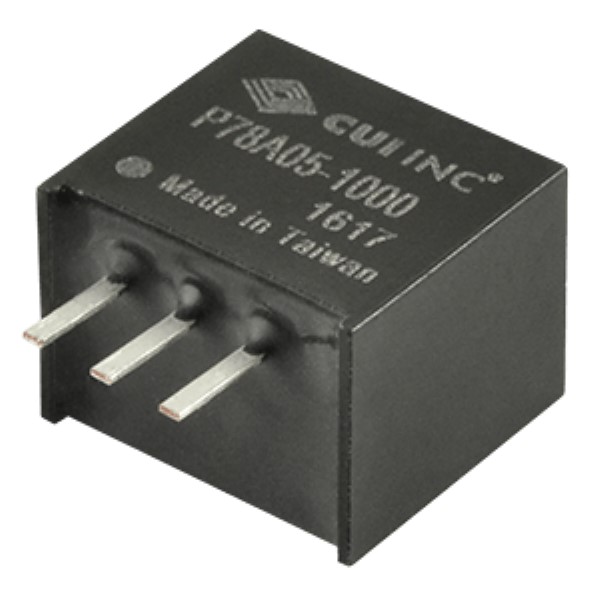

P78A05-1000
P78A05-1000

en stock: 70

Commande min: 42

Afficher le produit
V7805-1500R by cui inc.
Image is representational - see mfr. specs

V7805-1500R

CUI Inc.

1.5 A Output Current, 4.75~18 Vdc Input, Right Angle 3 Pin SIP, Non-Isolated, Dc-Dc Converter - 5 Vdc, 1.5 A, 7.5 W, 6.5~18 Vdc Input Range ...

Fiche technique
RoHS Compliant
Tube Emballage
ACCESSOIRES
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The V7805-1500R is a non-isolated switching regulator from the V78-1500 series designed to provide regulated 5V output with up to 1.5A current capacity. It features extremely high efficiency up to 97%, requires no heat sink, and is pin compatible with LM78XX linear regulators, available in a right-angle SIP package configuration. The device operates over an input voltage range of 6.5V to 18V (typical 12V) and delivers low ripple and noise (45 mVp-p maximum) with integrated short circuit protection and thermal shutdown at 150°C. Operating temperature range spans -40°C to +85°C, making it suitable for industrial and consumer applications requiring compact, efficient DC-DC conversion without external cooling.

Search Keywords: V78051500R

SPÉCIFICATION

Product Attribute
Attribute Value
Select Attribute
Products found: 0
fournisseur:
CUI Inc.
Référence:
V7805-1500R
Unité de mesure:
Per Each
RoHS:
Yes
HTS:
8504409580
COO:
CN
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Tube
Dimension:
11.5 x 17.5 x 94388mmmm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

EN STOCK: 81

Peut être expédié immédiatement

Commande min Quantitè: 25

PRICE (USD)

QTÉ
Prix unitaire
1
$15.737
25
$14.307
50
$13.833
100
$12.700
250
$12.504
500 +
$12.319
