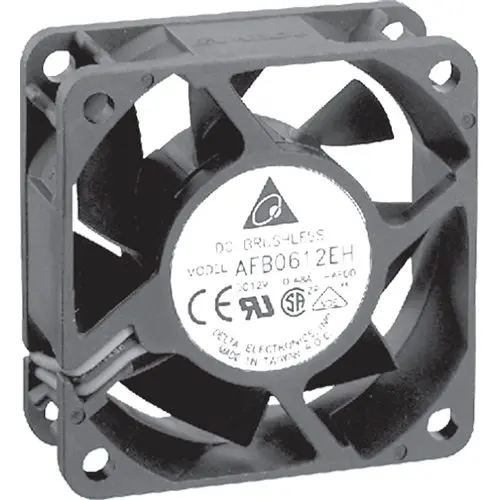

AFB0612DH-TP11
DC Fans DC Axial Fan - 60x25mm - 12VDC - 50.4CFM - 10.08W - 0.84A - 55dBA - 9000RPM - Ball Bearing - PWM ...
DESCRIPTION
Delta Electronics Ingress Protection Fans feature built-in resistance to environmental conditions such as dust, water and foreign objects that can disable and damage fans and thermal cooling equipment. Delta Electronics Ingress Protection (IP) fans provide IP55 and higher protection as an industry standard, offering protection against the intrusion of solid objects such as hands and fingers, as well as dust or dirt exposure, accidental contact, and water in the form of salt fog, moisture, or precipitation. Voltage - Rated 12VDC Size / Dimension Square - 60mm L x 60mm H Width 25.40mm Air Flow 50.4 CFM (1.41m³/min) Bearing Type Ball Fan Type Tubeaxial Features PWM Control, Speed Sensor (Tach) Noise 55.0 dB(A) Power (Watts) 10.10W RPM 9000 RPM Termination 4 Wire Leads Operating Temperature 14 ~ 158°F (-10 ~ 70°C) Weight 0.176 lb (79.83g) Current Rating (Amps) 0.840A Voltage Range 10.8 ~ 13.2VDC
Mots-clés de recherche: AFB0612DHTP11
SPÉCIFICATIONS
EN STOCK: 0
sur commande:
855
Peut expédier 11/9/26
Quantité minimale de commande pour qté en rupture de stock: 135
Ce produit n'est plus fabriqué, mais il peut exister des alternatives. Nous pouvons vous aider, Nous contacter.
Fiche technique
Learn more about Delta Fans PWM Series and IP55/IP65/IP68 Rated Series
