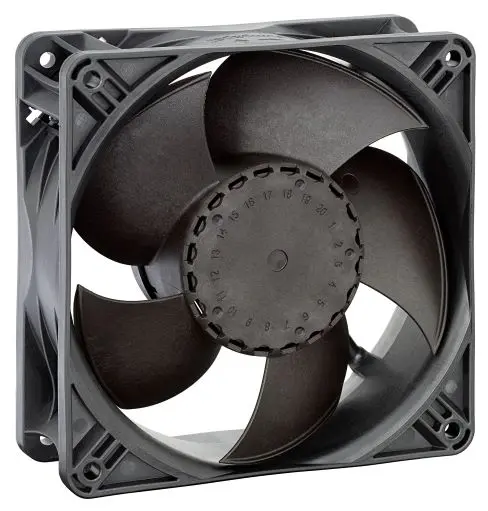

ACI4410HH
ACI4410HH

en stock: 643

Commande min: 2

Afficher le produit
Older Equivalent
4600XP
4600XP

en stock: 162

Commande min: 5

Afficher le produit
4600X by ebm-papst
Image non contractuelle - consultez les spécifications du fabricant

4600X

ebm-papst

AC Fan Axial Sintec Bearing 115V 106CFM 50dB 119 X 119 X 38mm ...

Fiche technique
RoHS Compliant
Box Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantie du certificat de conformité

DESCRIPTION

The 4600X is an AC Axial Fan with external rotor motor is integrated directly into the axial impeller, forming a compact axial fan unit. The axial fan prove their reputation as space-saving wonders by moving air for hot or cold air exchange in a wide variety of devices and systems. The outstanding feature of axial fan is small installation depth, low noise level and exceptional efficiency and is particularly well suited for air flow through heat exchangers. Impedance protected against overloading Metal fan housing and impeller Air intake over struts Rotational direction CW looking at rotor Voltage - Rated 115VAC Size / Dimension Square - 119mm L x 119mm H Width 38.00mm Air Flow 106.0 CFM (2.97m³/min) Noise 50.0 dB(A) Power (Watts) 18.00W Speed: 3100 RPM Fan housing with ground lug for screw M4 and UNC Sintec type of bearing

Search Keywords: 4600X

SPÉCIFICATION

Attribut du produit
Valeur de l'attribut
Sélectionner un attribut
Produits trouvés : 0
fournisseur:
ebm-papst
Référence:
4600X
Unité de mesure:
Par Each
RoHS:
Yes
HTS:
8414596090
COO:
CN
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
36
Package Type:
Box
Catégorie:
AC Fan
Dimension:
119 x 119 x 38 mm
Tension nominale:
115 V
Puissance nominale:
18 W
Débit d'air maximal:
106 CFM
Niveau de bruit:
50 dB
Caractéristiques spéciales:
None
Terminaison:
Terminals
Matériau du boîtier:
Metal
Température de fonctionnement:
-10 to 60 °C
  Possible Replacement options available.  See Alternatives

EN STOCK: 141

Expédition today, if you order in

sur commande: 250   Peut expédier 1/8/27

DÉLAI DE L'USINE 24 Weeks

Prix (USD)

QTÉ
Prix unitaire
1
$42.81
5
$39.88
10
$32.20
25
$31.57
50
$31.25
100
$31.17
250 +
$28.22
Log in for special pricing Cliquez pour demander un devis Price Match Request
