Image is representational - see mfr. specs

1554KGY

Name: 1554KGY
Brand: Hammond Canada
SKU: 45468826
Price: 19.07 USD
Availability: InStock

Hammond Canada

RAL7035 grey ABS plastic watertight enclosure ...

Fiche technique

RoHS Compliant

DESCRIPTION

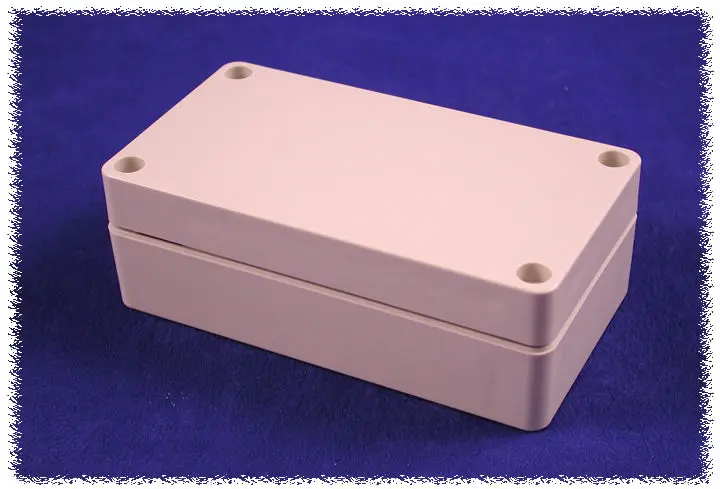

The 1554KGY is a General Purpose ABS plastic enclosure manufactured by Hammond in RAL-7035 gray color, designed for housing electronic components and assemblies. It features internal dimensions of 152.13 mm length × 82.13 mm width × 84.50 mm height, with external dimensions of 160.00 mm × 90.00 mm and a depth of 147.00 mm. The enclosure includes M3 brass inserts and M4 stainless steel inserts for secure component mounting, accepts #6 self-tapping screws, and comes with four mounting holes (Ø4.00 mm each) on the lid. The purchased assembly includes the box, lid, four cover screws, and a preformed silicone gasket, with a recommended cover screw torque of 2.5 lbf-in (30 cN-m). While the ABS version is not UL approved (UL94 - HB rating), it is suitable for general-purpose applications requiring a durable, cost-effective enclosure solution for electronics, instrumentation, and control systems.

Product Highlights:

Potential Applications:

Search Keywords: 1554KGY

SPÉCIFICATION

Product Attribute

Attribute Value

Select Attribute

Products found: 0

fournisseur:

Hammond Canada

Référence:

1554KGY

Unité de mesure:

Per Each

RoHS:

Yes

HTS:

3926909995

COO:

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
