M80-5400842

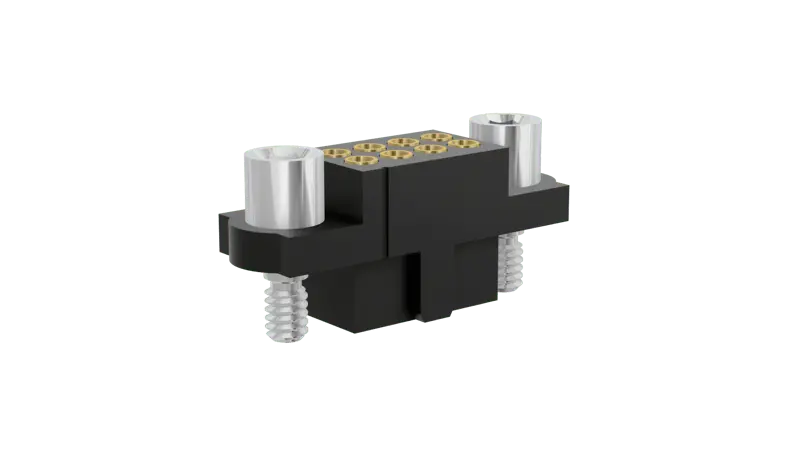

The M80-5400842 is an 8-contact, double-row, 2mm pitch rectangular connector for low-frequency signal applications in high-density electronic equipment. ...
DESCRIPTION

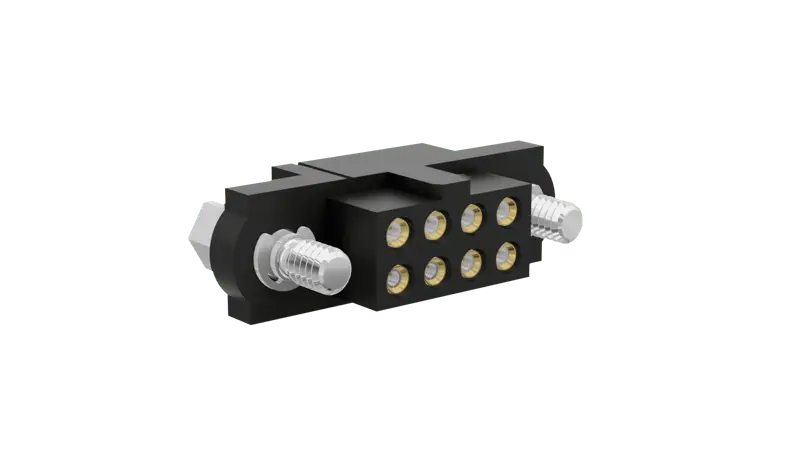

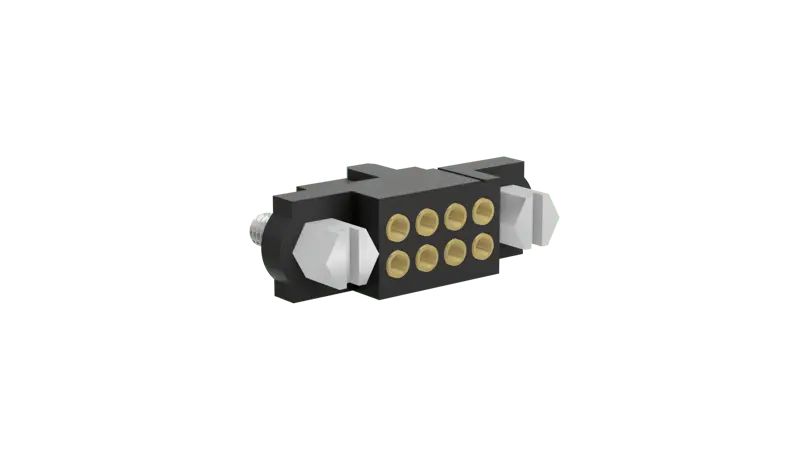

The M80-5400842 is an 8-contact, double-row rectangular connector from the M80 series, designed for reliable board-to-board, cable-to-board, and cable-to-cable interconnections. It features a current rating of up to 3.0A per contact when all contacts are loaded at 25°C and a working voltage of 800V DC or AC Peak. The connector is built for durability, rated for 500 mating cycles, and can operate in a wide temperature range from -55°C to +125°C. With contacts featuring gold on the contact area and 100% tin on the tail, it ensures low initial contact resistance of 20mΩ maximum. Polarized and fully shrouded, this connector is ideal for low-voltage applications requiring high packing density and robustness against vibration and shock.
Mots-clés de recherche: M805400842
SPÉCIFICATIONS
EN STOCK: 8
Peut être expédié immédiatement
Achetez les 8 en stock ou la quantité minimale de commande habituelle de 14
sur commande:
126
Peut expédier 11/16/26
Lot de stock uniquement: 8
Quantité minimale de commande: 14
Ce modèle de message est utilisé pour informer un affilié qu'une certaine commande a été payée. La commande obtient le statut Payée lorsque le montant a été débité.: 14
DÉLAI DE L'USINE 13 Semaines
Prix (CAD)
Outils/Modèles 3D
Fiche technique
