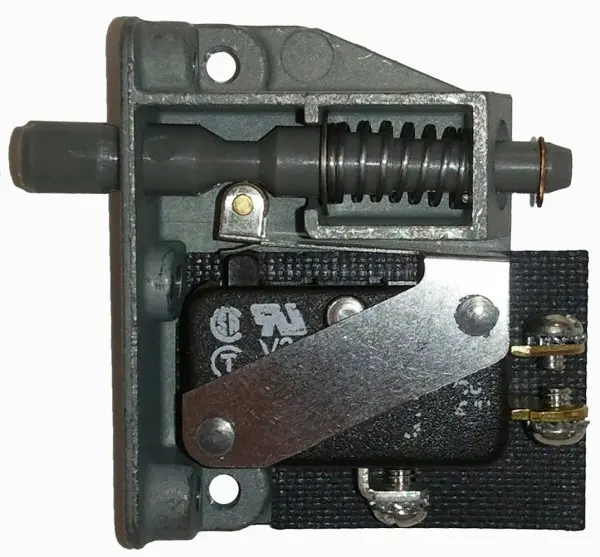

22AC1 by honeywell
Image non contractuelle - consultez les spécifications du fabricant

22AC1

Honeywell

MICRO SWITCH™ Basic Switches: AC Series, Door Switch, Single Pole Double Throw (SPDT), 15 A at 250 Vac, Rod Actuator, Silver Contacts, Screw Termination ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantie du certificat de conformité

DESCRIPTION

The 22AC1 Safety Interlock Switch from Honeywell features Silver contacts and single pole double throw circuitry. This Honeywell Switch is designed for precision on and off application needs. Safety Interlock Switches are designed for mounting on a door or a cover, so that when the door or other part is opened, they open automatically. They prevent the gear shift lever from moving until the brake is applied.

It is available with a choice of momentary, maintained or pull-to-cheat actuation to offer design flexibility. When the service door or drawer is opened, this Safety Interlock Switch cuts down the power automatically. These safety switches are generally used in appliances, vending machines, office equipment, computer and business equipment, test instruments, communications equipment, and HVAC equipment, among others.

Points forts du produit:

  • Choice of termination
  • Choice of momentary, maintained or pull-to-cheat actuation
  • UL recognized versions available
  • Versatile mounting bracket for side or end mounting
  • Current rating ranges from 5 A to 25 A
  • Available with one or two SPDT switches
  • Automatically cuts power when service door or drawer is opened

Potential Applications:

  • Appliances
  • Vending machines
  • Office equipment
  • Computer/business equipment
  • Test instruments
  • Medical/dental equipment
  • Communications equipment
  • HVAC equipment

Search Keywords: 22AC1

SPÉCIFICATION

Attribut du produit
Valeur de l'attribut
Sélectionner un attribut
Produits trouvés : 0
fournisseur:
Honeywell
Référence:
22AC1
Unité de mesure:
Par Each
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Door Interlock
Style d'actionneur:
Rod
Configuration pôles-directions:
SPDT
Courant nominal maximal:
15@250VAC A
Type de borne:
Screw
Température de fonctionnement:
-53 to 82 °C
Indice de protection IP:
N/A
Dimension:
50.01 x 13.21 x 39.78 mm
Configuration de l'interrupteur:
N.O./N.C.
Orientation du corps:
Straight

EN STOCK: 68

Expédition today, if you order in

DÉLAI DE L'USINE 4 Weeks

Prix (USD)

QTÉ
Prix unitaire
1
$65.02
5
$62.54
10
$57.80
25
$55.35
50
$55.00
100
$54.87
250 +
$54.73
Emballage standard du fournisseur
