2CPSA1A1

Name: 2CPSA1A1
Brand: Honeywell
SKU: 11917661
Price: 1224.31 USD
Availability: InStock

Honeywell

Honeywell Limit Switch 2CPSA1A1, 1/2 NPT, cable actuator, gold-plated contacts, 15 G shock, 1M mechanical life. ...

Fiche technique

RoHS Compliant

DESCRIPTION

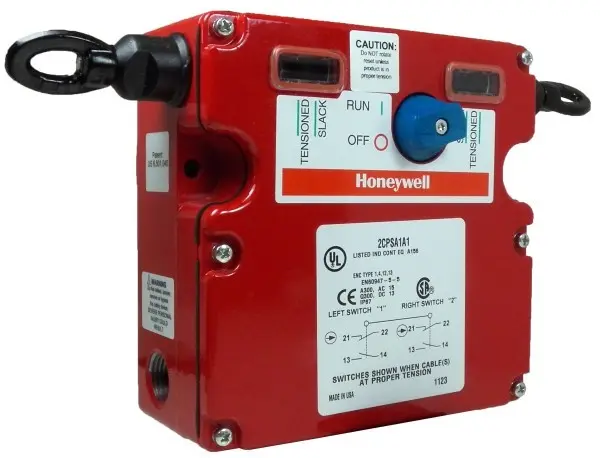

2CPSA1A1 Limit Switch from Honeywell comes with a cable actuator which is maintained both sides and has zinc die-cast housing. It offers positive opening operation of normally closed contacts. This cable pull safety switch has standard gold-plated contacts and also offers a choice of three actuator configuration.

Limit Switches are generally used to control machinery in industrial applications. They act as a safety interlock and can be used to establish or disrupt electrical connections. Honeywell Limit Switch 2CPSA1A1 is used in long conveyor systems found in warehouses and distribution centers, conveyor systems having a high amount of vibration and conveyor systems that experience wide temperature swings. It is also used in long conveyor systems where easy through wiring, or highly visible trip status is required and perimeter guarding where hosedown conditions are present.

Points forts du produit:

24 Vdc or 120 Vac bright, multi-cluster LED status indicator light available
Gold-plated contacts are standard
Zinc die-cast housing
Positive opening operation of normally closed contacts
Choice of 2NC/2NO or 3NC/1NO contact configurations
Maximum cable length in a single direction is 76 m (250 ft.) for a combined length of 152 m (500 ft.) in dual directions
Choice of three actuator configurations
Removable contact block version available
Large wiring cavity with straight-through wiring
Optional hardware packs available
UL, CE, CSA, SIL 3 capable

Potential Applications:

Search Keywords: 2CPSA1A1

SPÉCIFICATION

Attribut du produit

Valeur de l'attribut

Sélectionner un attribut

Produits trouvés : 0

fournisseur:

Honeywell

Référence:

2CPSA1A1

Unité de mesure:

Par Each

RoHS:

Yes

HTS:

85365080

COO:

ECCN:

EAR99

Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
