LSG1A

Honeywell

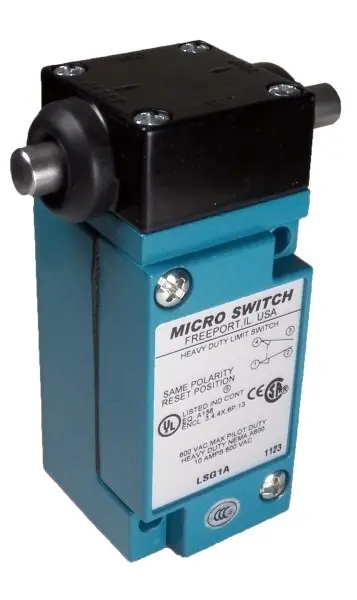

MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Maintained, Side Pin Plunger, Ø 9.47 mm [0.38 in], Steel Plunger, 1NC 1NO Single Pole Double Throw (SPDT) Snap Action, Double Break, AC 15, A600; DC 13, R300, 0.5 in - 14 NPT Conduit, Plug-In, Operating Temperature: -1 °C to 93 °C [30 °F to 200 °F], IP 65/66/67, NEMA 1, 3, 4, 4X, 6, 6P, 12, and 13, Agency Approvals: UL, CSA, CE, CCC ...

Fiche technique
RoHS Compliant
Emballage
ACCESSOIRES
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Garantie du certificat de conformité

DESCRIPTION

MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Maintained, Side Pin Plunger, Ø 9.47 mm [0.38 in], Steel Plunger, 1NC 1NO Single Pole Double Throw (SPDT) Snap Action, Double Break, AC 15, A600; DC 13, R300, 0.5 in - 14 NPT Conduit, Plug-In, Operating Temperature: -1 °C to 93 °C [30 °F to 200 °F], IP 65/66/67, NEMA 1, 3, 4, 4X, 6, 6P, 12, and 13, Agency Approvals: UL, CSA, CE, CCC

Points forts du produit:

  • Wide variety of operating heads
  • Field adjustable operating modes, for reduced inventory
  • Convenience of on-the-spot adjustment instructions
  • Complete choice of circuitry and electrical rating options
  • Plug-in and non plug-in versions have identical operating characteristics and are dimensionally interchangeable
  • Manifold (rear-wire) version
  • Explosion-proof versions
  • Low temperature versions to -40 C (-40 F)
  • Captive head and body screws
  • Designed to withstand seismic shock
  • Stainless steel (NEMA 4X) versions
  • Pre-leaded cable or pre-wired connector types
  • Epoxy filled wash down (NEMA 6P) types
  • Completely fluorocarbon (FC) sealed versions

Potential Applications:

  • Machine Tools
  • Material Handling
  • Packaging
  • Presses
  • Pulp and Paper
  • Welding
  • PLC Interface

Search Keywords: LSG1A

SPÉCIFICATION

Attribut du produit
Valeur de l'attribut
Sélectionner un attribut
Produits trouvés : 0
fournisseur:
Honeywell
Référence:
LSG1A
Unité de mesure:
Par Each
RoHS:
Yes
HTS:
85365007
COO:
MX
ECCN:
EAR99
Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Heavy Duty
Style d'actionneur:
Side Plunger
Configuration pôles-directions:
SPDT
Configuration de l'interrupteur:
N.O./N.C.
Force de fonctionnement:
44.5 N
Dimension:
76.2 x 44.5 x 101.7 mm
Courant nominal maximal:
10@24VDC A
Type de borne:
Conduit
Norme NEMA comme indice de protection du boîtier:
1, 3, 4, 4X, 6, 6P, 12, 13
Orientation du corps:
Right Angle

EN STOCK: 9

Expédition today, if you order in

Quantité minimale de commande pour qté en rupture de stock: 3

DÉLAI DE L'USINE 29 Weeks

Prix (USD)

QTÉ
Prix unitaire
1
$550.05
3
$547.36
5
$546.00
8
$544.63
10 +
$543.27
Log in for special pricing Cliquez pour demander un devis Price Match Request
